GL8211 - High Power Factor & Accuracy Constant Current LED Driver

Datasheet Summary

Description

The GL8211/11B is a highly-integrated, low startup current, average current mode, one cycle control PFC and fixed switching frequency PWM controller.

These functions enable the LED driver to easily meet the accuracy average LED current and high power factor requirements.

Features

  • High Power Factor by One Cycle Control Accuracy Constant Current Low BOM Cost Linear Dimming on DIM Pin Average Current / Fixed Frequency Control Gate Output Voltage Clamp LED Open Protection (OVP) LED Short Protection (SCP) Over Current Protection (OCP) Internal OTP Protection 300mA Driving Capability for OUT Pin Fast Start Current for GL8211B.

📥 Download Datasheet

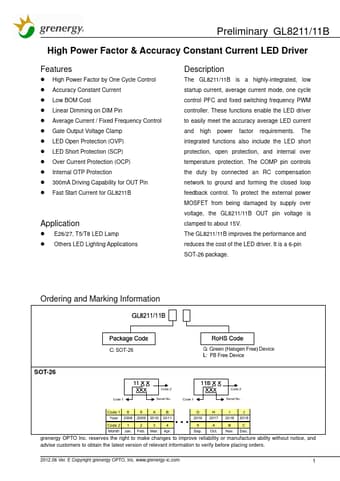

Datasheet preview – GL8211

Datasheet Details

Part number GL8211
Manufacturer grenergy
File Size 613.50 KB
Description High Power Factor & Accuracy Constant Current LED Driver
Datasheet download datasheet GL8211 Datasheet
