GL8212 - High Power Factor & Accuracy Constant Current LED Driver

GL8212 Description

Preliminary GL8212 High Power Factor & Accuracy Constant Current LED Driver .
The GL8212 is a highly-integrated, low startup current, TM (Transition Mode), fixed on- time PFC control and PWM controller.

GL8212 Features

* TM (Transition Mode) Fixed On -Time PFC Control Accuracy Constant Current Low BOM Cost Inductor Size Reduction CT Pin Adjust Frequency Range for Optimization Over Voltage Protection (OVP)-Auto Recovery LED Short Protection (SCP) -Auto Recovery Ov

GL8212 Applications

* Ordering and Marking Information GL8212 Package Code C: SOT-26 RoHS Code G: Green (Halogen Free) Device L: PB Free Device SOT-26 12 X X XXX Code 1 Code 2 Serial No. Code 1 Year Code 2 Month 8 2008 1 Jan. 9 2009 2 Feb. A 2010 3 Mar. B 2011 4 Apr.
* G 2016 9 Sep. H 2017 A Oct

📥 Download Datasheet

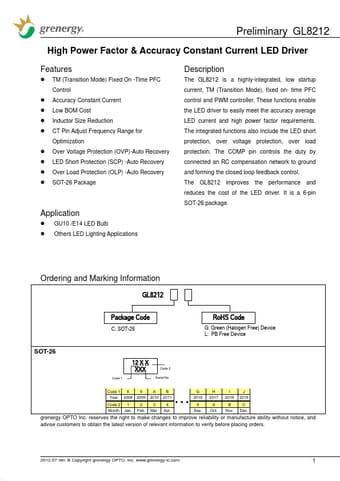

Preview of GL8212 PDF
datasheet Preview Page 2

Datasheet Details

Part number
GL8212
Manufacturer
grenergy
File Size
271.15 KB
Datasheet
GL8212-grenergy.pdf
Description
High Power Factor & Accuracy Constant Current LED Driver
