GL8212A - High Power Factor & Accuracy Constant Current LED Driver

GL8212A Description

Preliminary GL8212A High Power Factor & Accuracy Constant Current LED Driver .
The GL8212A is a highly-integrated, low startup current, TM (Transition Mode), fixed on- time PFC control and PWM controller.

GL8212A Features

* TM (Transition Mode) Fixed On -Time PFC Control Accuracy Constant Current Low BOM Cost Inductor Size Reduction CT Pin Adjust Frequency Range for Optimization Over Voltage Protection (OVP)-Auto Recovery LED Short Protection (SCP) -Auto Recovery Over Load Protection (OLP) -Auto Recovery SOT-26 Package

GL8212A Applications

* Ordering and Marking Information SOT-26 Code 1 8 Year 2008 Code 2 1 Month Jan. 9 2009 2 Feb. A 2010 3 Mar. B 2011 4 Apr.
* G 2016 9 Sep. H 2017 A Oct. I 2018 B Nov. J 2019 C Dec. grenergy OPTO Inc. reserves the right to make changes to improve reliability or manufacture a

📥 Download Datasheet

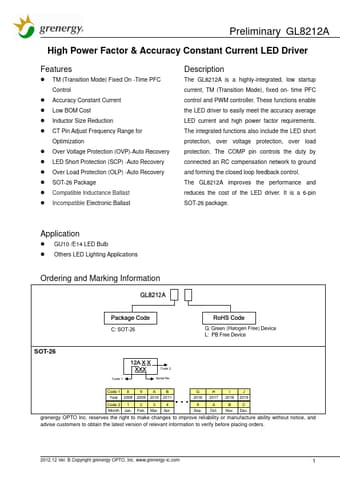

Preview of GL8212A PDF

Datasheet Details

Part number
GL8212A
Manufacturer
grenergy
File Size
73.17 KB
Datasheet
GL8212A-grenergy.pdf
Description
High Power Factor & Accuracy Constant Current LED Driver
