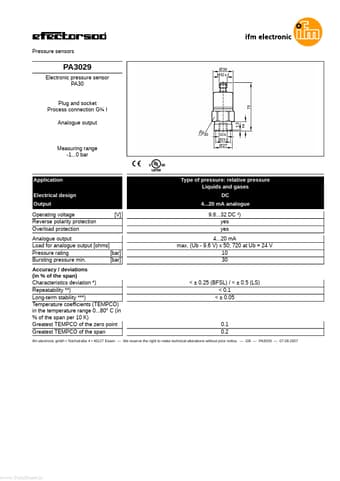

PA3029 Electronic pressure sensor

Pressure sensors PA3029 Electronic pressure sensor PA30 Plug and socket Process connection G¼ I Analogue output Measuring range -10 bar Application Electrical design Output Operating voltage Reverse polarity protection Overload protection [V] Type of pressure: relative pressure Liquids and gases DC 420 mA analogue 9.632 DC ¹) yes yes 420 mA max. (Ub - 9.6 V) x 50; 720 at Ub = 24 V 10 30 Analogue output Load for analogue output [ohms] Pressure rating [bar] Bursting pressure min. [bar] Accur.
