PA3017

2W STEREO AUDIO AMPLIFIER

PA3017 Features

* include internal gain control which requires few external components, an active-low shutdown mode input and thermal shutdown protection.

* FEATURES

* 2W output power into 3Ω load from 5V supply each channel

* Gain control internally

* Differential input fully

* Depop circuitry

PA3017 General Description

As a stereo audio speaker which is operating on a single 5V supply, the UTC PA3017 is capable of delivering 2W of output power per channel into 3Ω loads with less than 1% THD+N. Way of two terminals (GAIN0 and GAIN1) can configured and control the amplifier gain. It also provide gain settings of 6 d.

PA3017 Datasheet (397.49 KB)

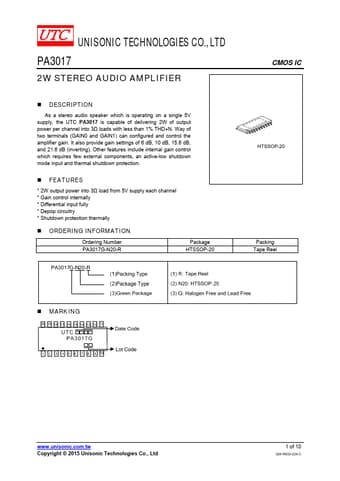

Preview of PA3017 PDF

Datasheet Details

Part number:

PA3017

Manufacturer:

Unisonic Technologies

File Size:

397.49 KB

Description:

2w stereo audio amplifier.
