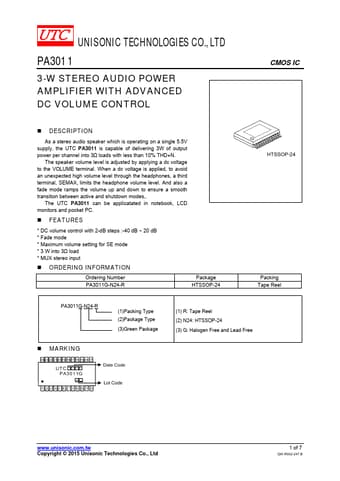

PA3011 Datasheet, Amplifier, Unisonic Technologies

PA3011 Features

• Amplifier
• DC volume control with 2-dB steps :-40 dB ~ 20 dB
• Fade mode
• Maximum volume setting for SE mode
• 3 W into 3Ω load
• MUX stereo input

PDF File Details

Part number:

PA3011

Manufacturer:

Unisonic Technologies

File Size:

254.54kb

Download:

📄 Datasheet

Description:

3-w stereo audio power amplifier. As a stereo audio speaker which is operating on a single 5.5V supply, the UTC PA3011 is capable of delivering 3W of output power per
