PA3332 Datasheet - Unisonic Technologies

PA3332 2.6W STEREO AUDIO AMPLIFIER

The UTC PA3332 is a stereo audio power amplifier. When the device is idle, it enters SHDN mode for some low current consumption applications. The current dissipation is thus reduced below 5μA. Mute function is included to mute the output. Operating on a 5V power supply, the UTC PA3332 is capable of.

PA3332 Features

* Including de-pop circuit

* Output power at 1% THD+N, VDD=5V 2.0W/CH (TYP.) into a 4Ω Load 1.3W/CH (TYP.) into a 8Ω Load

* Output power at 10% THD+N, VDD=5V 2.6W/CH (typical) into a 4Ω Load 1.6W/CH (typical) into a 8Ω Load

* BTL mode (Bridge-Tied Load)

* Maximum output power cla

PA3332-UnisonicTechnologies.pdf

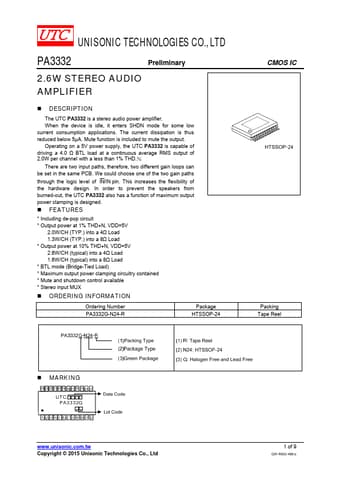

Preview of PA3332 PDF
PA3332 Datasheet Preview Page 2 PA3332 Datasheet Preview Page 3

Datasheet Details

Part number:

PA3332

Manufacturer:

Unisonic Technologies

File Size:

284.20 KB

Description:

2.6w stereo audio amplifier.
