PESD5V0S1BB Transient Voltage Suppressors ESD Protection Diodes

SOD-523 SURFACE MOUNT Very Small Outline Flat Lead Plastic Package Transient Voltage Suppressors ESD Protection Diodes Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter Value Units Vpp ESD IEC61000-4-2(ESD) Per Human Body Model Air Contact ±15 ±8 16 KV KV PD Power Dissipation (Note 1) 150 mW TSTG Storage Temperature Range -55 to +150 °C TJ Operating Junction Temperature +150 °C TL Max Lead Solder Temperature range (10 Second Duration) 260 °C These.

PESD5V0S1BB Features

* Stand-off Voltage: 5V0

* Low Leakage

* Response Time is Typically < 1ns

* IEC61000-4-2 Level 4 ESD Protection

* RoHS Compliant

* Green EMC

* Matte Tin(Sn) Lead Finish PESD5V0S1BB Preliminary Datasheet Number: Preliminary Nov. 2014 Page 1 PESD5V0S1BB Preliminary Da

PESD5V0S1BB-msksemi.pdf

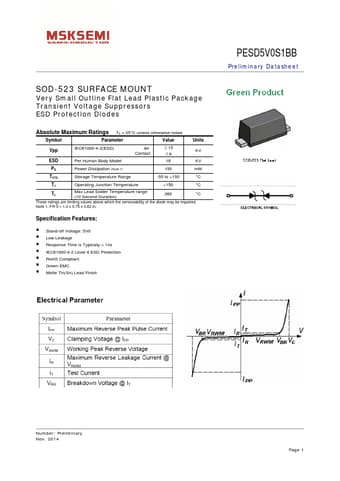

PESD5V0S1BB Datasheet Preview — Preview of PESD5V0S1BB PDF

Datasheet Details

Part number:

PESD5V0S1BB

Manufacturer:

msksemi

File Size:

269.24 KB

Description:

Transient voltage suppressors esd protection diodes.
