PESD5V0S1BL TVS DIODE

PESD5V0S1BL Description

PESD5V0S1BL 1-Line Bi-directional TVS Diode .

PESD5V0S1BL Features

* Ultra small package: 1.0x0.6x0.5mm
* Ultra low capacitance: 15pF typical
* Ultra low leakage: nA level
* Low operating voltage: 5V
* Low clamping voltage
* 2-pin leadless package
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air discha

PESD5V0S1BL Applications

* Dimensions DFN1006 Pin Configuration
* Cellular Handsets and Accessories
* Personal Digital Assistants
* Notebooks and Handhelds
* Portable Instrumentation
* Digital Cameras
* Peripherals
* Audio Players
* Keypads, Side Keys, LCD Displays Mechanical Characteristics

📥 Download Datasheet

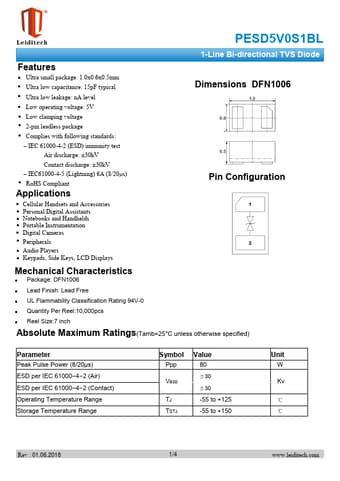

Preview of PESD5V0S1BL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PESD5V0S1BL
Manufacturer
Leiditech
File Size
1.67 MB
Datasheet
PESD5V0S1BL-Leiditech.pdf
Description
TVS DIODE
