PESD5V0R1BSF Ultra Low Capacitance Bi-directional TVS Diode

PESD5V0R1BSF Description

PESD5V0R1BSF 1-Line Ultra Low Capacitance Bi-directional TVS Diode .

PESD5V0R1BSF Features

* Ultra small package: 0.6x0.3x0.3mm
* Ultra low capacitance: 0.25pF typical
* Ultra low leakage: nA level
* Low operating voltage: 5V
* Low clamping voltage
* 2-pin leadless package
* Complies with following standards:
* IEC 61000-4-2 (ESD) immunity test Air disc

PESD5V0R1BSF Applications

* Cellular Handsets and Accessories
* Display Ports
* MDDI Ports
* USB Ports
* Digital Visual Interface (DVI)
* PCI Express and Serial SATA Ports Dimensions DFN0603 1 2 Pin Configuration 1 2 Mechanical Characteristics
* Package: DFN0603
* Lead Finish: Lead Free

📥 Download Datasheet

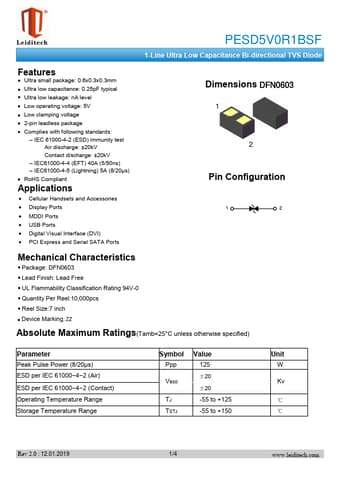

Preview of PESD5V0R1BSF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PESD5V0R1BSF
Manufacturer
Leiditech
File Size
2.01 MB
Datasheet
PESD5V0R1BSF-Leiditech.pdf
Description
Ultra Low Capacitance Bi-directional TVS Diode
