PESD5V0R1BBSF-Q Extremely low capacitance bidirectional ESD protection diode

PESD5V0R1BBSF-Q Description

PESD5V0R1BBSF-Q Extremely low capacitance bidirectional ESD protection diode 3 July 2025 Product data sheet 1.General .
Extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS protection family.

PESD5V0R1BBSF-Q Features

* Bidirectional ESD protection of one line
* Extremely low diode capacitance Cd = 0.08 pF
* Extremely low insertion loss αIL = -0.25 dB at 10 GHz
* Extremely low return loss αRL = -17 dB at 10 GHz
* Low clamping voltage to protect sensitive I/Os
* Extr

PESD5V0R1BBSF-Q Applications

* 3. Applications
* Automotive Low-Voltage Differential Signaling (LVDS)
* Automotive Multigigabit Ethernet
* SERDES lines
* Automotive A/V monitors, displays and cameras
* USB4 and Thunderbolt 4 data lines 4. Quick reference data Table 1. Quick reference dat

📥 Download Datasheet

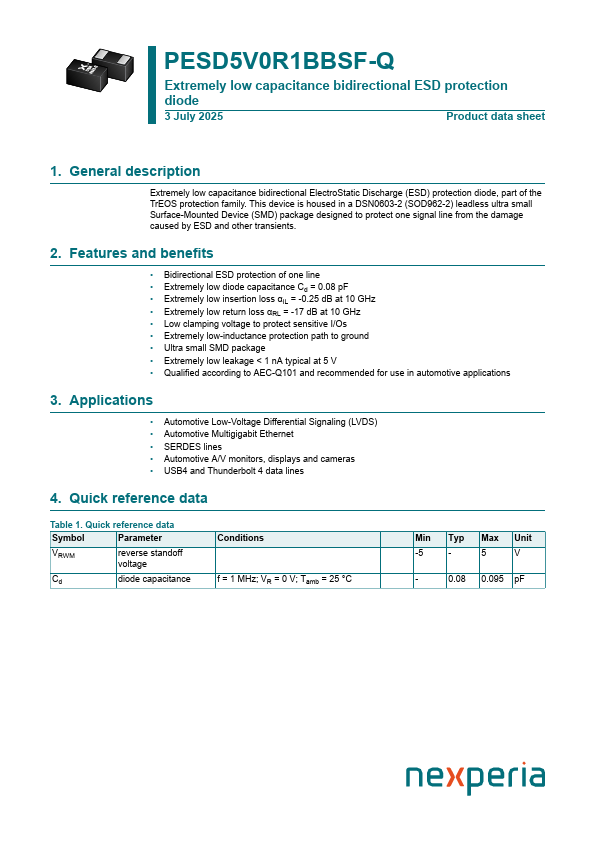

Preview of PESD5V0R1BBSF-Q PDF

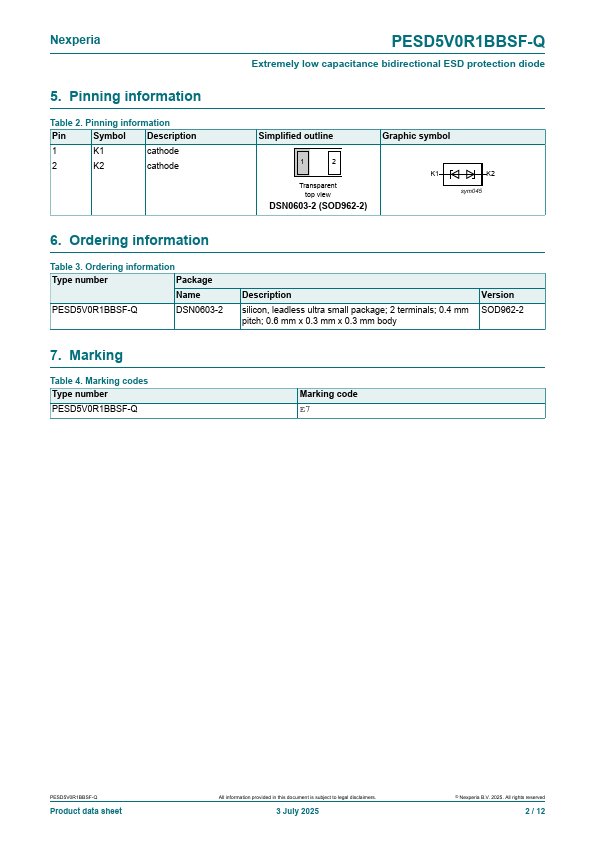

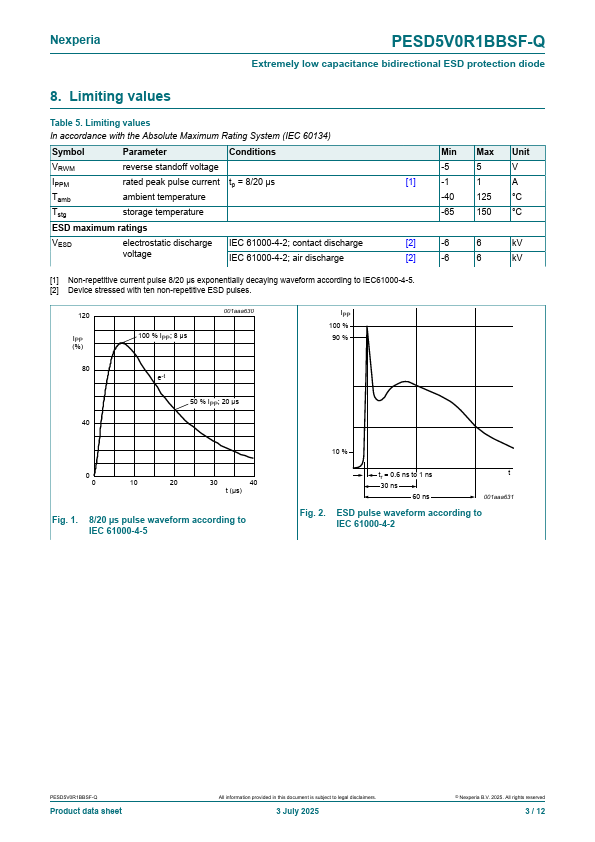

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PESD5V0R1BBSF-Q
Manufacturer
nexperia ↗
File Size
226.53 KB
Datasheet
PESD5V0R1BBSF-Q-nexperia.pdf
Description
Extremely low capacitance bidirectional ESD protection diode
