PESD5V0R1BDSFP Extremely low clamping bidirectional ESD protection diode

PESD5V0R1BDSFP Description

060D3SP-N2 PESD5V0R1BDSFP Extremely low clamping bidirectional ESD protection diode 3 September 2025 Short data sheet 1.General .
Extremely low clamping, extremely low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS protection family.

PESD5V0R1BDSFP Features

* Bidirectional ESD protection of one line
* Extremely low diode capacitance, Cd = 0.12 pF at 1 MHz
* Extremely low clamping voltage to protect sensitive transceivers
* Extremely low leakage current < 1 nA at 5 V
* Extremely low inductance protection path to g

PESD5V0R1BDSFP Applications

* Cellular handsets and accessories
* Portable electronics
* Communication systems
* Computers and peripherals
* USB4, USB3.2, Thunderbolt and HDMI2.1 data lines 4. Quick reference data Table 1. Quick reference data Symbol Parameter VRWM reverse standoff

📥 Download Datasheet

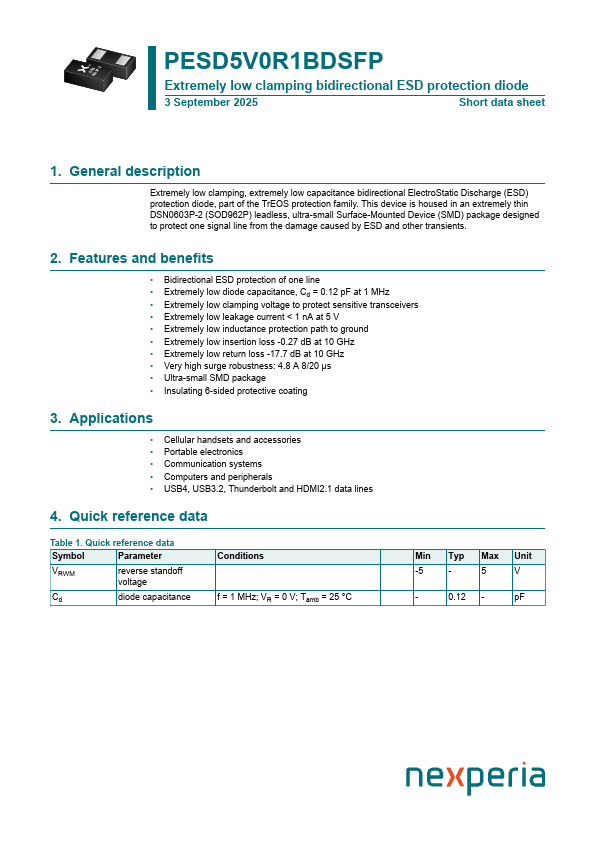

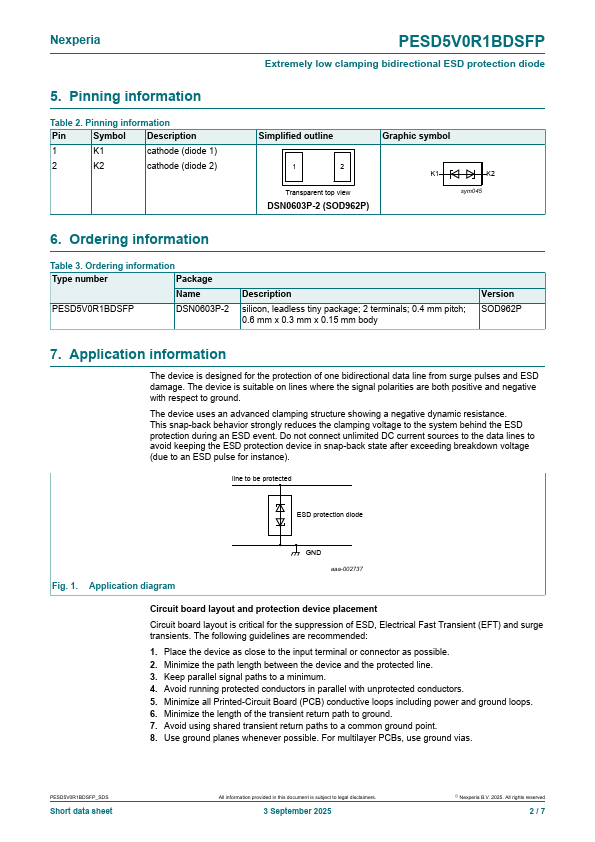

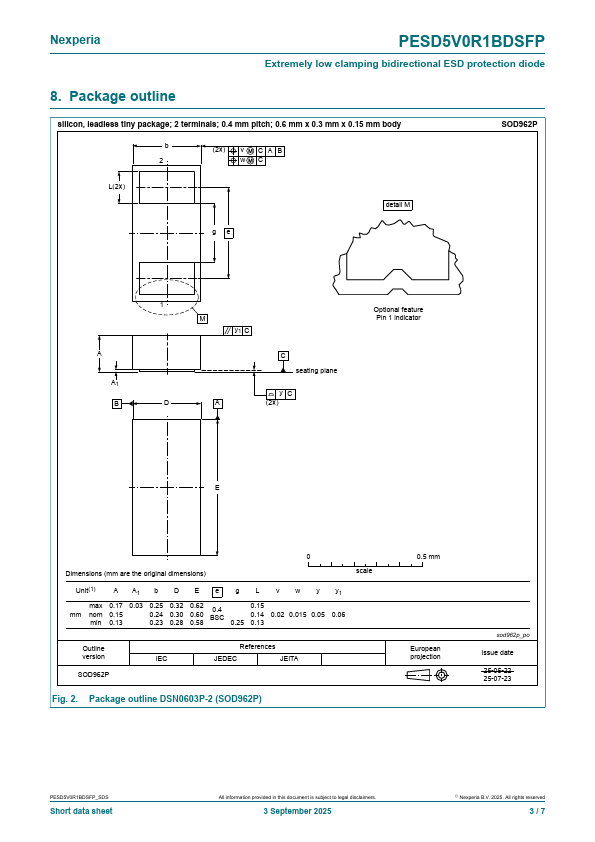

Preview of PESD5V0R1BDSFP PDF
