* Optimised bipolar output voltages for IGBT/ Mosfet gate drives
* Reinforced insulation to UL60950 recognised3
* ANSI/AAMI ES60601-1, 1 MOPP/2 MOOP’s recognised4
* 5.2kVDC isolation test voltage ‘Hi Pot Test’
* Ultra low coupling capacitance
* SIP pack
MGJ2D122005SC Datasheet (252.14 KB)
MGJ2D122005SC
muRata
252.14 KB
5.2kvdc isolated 2w gate drive dc-dc converters.

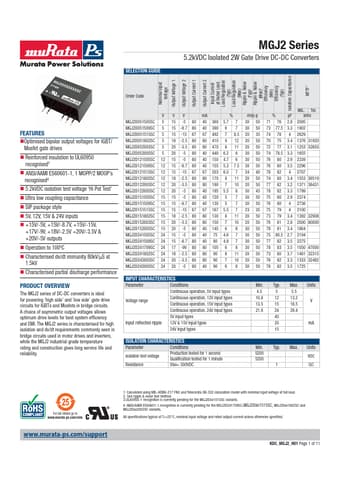

www.murata-ps.com SELECTION GUIDE MGJ2 Series 5.2kVDC Isolated 2W Gate Drive DC-DC Converters Nominal Input Voltage Output Voltage 1 Output Voltage.
