NDTD0505C - Isolated 3W Wide Input Dual Output DC/DC Converters

Product Overview

muRata

📥 Download Datasheet

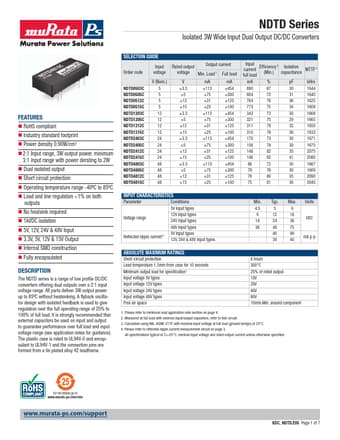

NDTD0505C Isolated 3W Wide Input Dual Output DC/DC Converters by muRata - Datasheet Preview — Datasheet preview – NDTD0505C

Datasheet Details

Part number	NDTD0505C
Manufacturer	muRata
File Size	124.06 KB
Description	Isolated 3W Wide Input Dual Output DC/DC Converters
Datasheet	NDTD0505C Datasheet
Note	This datasheet PDF includes multiple part numbers: NDTD0505C, NDTD0503C. Please refer to the document for exact specifications by model.
Additional preview pages of the NDTD0505C datasheet.

Product details

Description

The NDTD series is a range of low proﬁle DC/DC converters offering dual outputs over a 2:1 input voltage range.

Features

RoHS compliant.
Industry standard footprint.
Power density 0.90W/cm3.
2:1 Input range, 3W output power, minimum 3:1 input range with power derating to 2W.
Dual isolated output.
Short circuit protection.
Operating temperature range -40ºC to 85ºC.
Load and line regulation.
