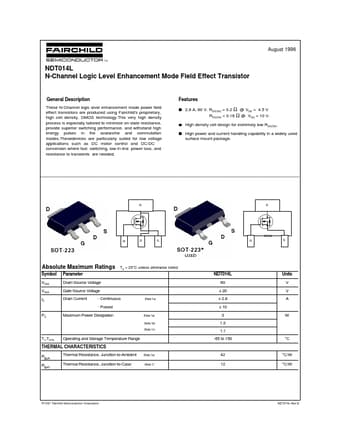

NDT014L Datasheet, Mosfet, Fairchild

NDT014L Features

• Mosfet 2.8 A, 60 V. RDS(ON) = 0.2 Ω @ VGS = 4.5 V RDS(ON) = 0.16 Ω @ VGS = 10 V. High density cell design for extremely low RDS(ON). High power and current handling capability in a widely used

PDF File Details

Part number:

NDT014L

Manufacturer:

Fairchild

File Size:

229.66kb

Download:

📄 Datasheet

Description:

N-channel mosfet. These N-Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell den

NDT014L Application

• Applications such as DC motor control and DC/DC conversion where fast switching, low in-line power loss, and resistance to transients are needed. F
