NDT3055 Datasheet - Fairchild

N-Channel MOSFET

NDT3055 Features

* 4 A, 60 V. RDS(ON) = 0.100 Ω @ VGS = 10 V. High density cell design for extremely low RDS(ON). High power and current handling capability in a widely used surface mount package. SuperSOTTM-3 SuperSOTTM-6 SuperSOTTM-8 SO-8 SOT-223 SOIC-16 D D D D S D G SOT-223 G D S S SOT-223

* (J23Z)

NDT3055 General Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. These devices are particul.

NDT3055 Datasheet (226.27 KB)

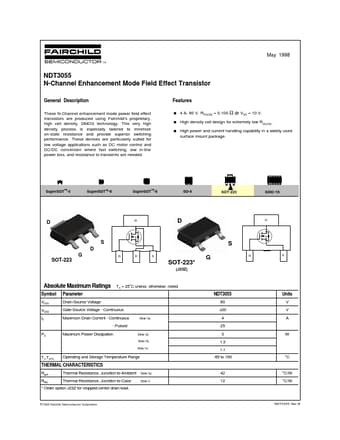

NDT3055 Datasheet Preview — Preview of NDT3055 PDF

Datasheet Details

Part number:

NDT3055

Manufacturer:

Fairchild

File Size:

226.27 KB

Description:

N-channel mosfet.
