NDT3055L Datasheet, Transistor, ON Semiconductor

NDT3055L Features

  • Transistor
  • 4 A, 60 V
  • RDS(ON) = 0.100 W @ VGS = 10 V
  • RDS(ON) = 0.120 W @ VGS = 4.5 V
  • Low Drive Requirements Allowing Operation Directly from Logic Drivers. V

PDF File Details

Part number:

NDT3055L

Manufacturer:

ON Semiconductor ↗

File Size:

199.13kb

Download:

📄 Datasheet

Description:

N-channel logic level enhancement mode field effect transistor. This Logic Level N

  • Channel enhancement mode power field effect transistor is produced using onsemi’s proprietary, high cell d

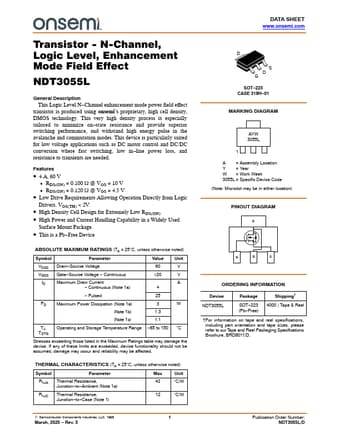

  • Datasheet Preview: NDT3055L 📥 Download PDF (199.13kb)
    Page 2 of NDT3055L Page 3 of NDT3055L

    NDT3055L Application

    • Applications such as DC motor control and DC/DC conversion where fast switching, low in
    • line power loss, and resistance to transients are ne
