NDTD0515C Datasheet - muRata

Isolated 3W Wide Input Dual Output DC/DC Converters

NDTD0515C Features

* RoHS compliant

* Industry standard footprint

* Power density 0.90W/cm3

* 2:1 Input range, 3W output power, minimum 3:1 input range with power derating to 2W

* Dual isolated output

* Short circuit protection

* Operating temperature range -40ºC

NDTD0515C General Description

The NDTD series is a range of low proﬁle DC/DC converters offering dual outputs over a 2:1 input voltage range. All parts deliver 3W output power up to 85ºC without heatsinking. A ﬂyback oscillator design with isolated feedback is used to give regulation over the full operating range of 25% to 100% .

NDTD0515C Datasheet (124.06 KB)

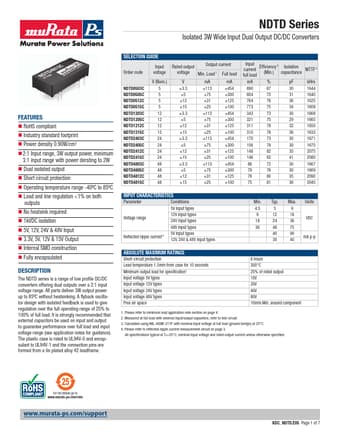

NDTD0515C Datasheet Preview — Preview of NDTD0515C PDF

Datasheet Details

Part number:

NDTD0515C

Manufacturer:

muRata

File Size:

124.06 KB

Description:

Isolated 3w wide input dual output dc/dc converters.
