SF2415E-1 Datasheet - muRata

SF2415E-1 SAW Filter

Low Loss Filter for ISM Band AEC-Q200 RoHS Compliance This component is compliant with RoHS directive. This component was always RoHS compliant from the first date of manufacture. SF2415E-1 869.00 MHz SAW Filter A1 Maximum Ratings Rating Input Power Level DC Voltage Operable Temperature Range Storage Temperature Range in Tape and Reel Specification Temperature Range Soldering Profile Maximum Temperature, 5 cycles/10 s maximum Value 20 6 -45 to +125 -40 to +85 -40 to +80 265 Units .

SF2415E-1-muRata.pdf

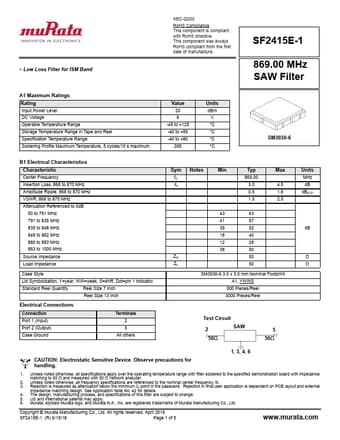

Preview of SF2415E-1 PDF
SF2415E-1 Datasheet Preview Page 2 SF2415E-1 Datasheet Preview Page 3

Datasheet Details

Part number:

SF2415E-1

Manufacturer:

muRata

File Size:

555.04 KB

Description:

Saw filter.
