SF2434E Datasheet - muRata

SF2434E 1223MHz SAW Filter

1 Gr.
Designed for Front-end GPS Applications Low Insertion Loss 3.0 x 3.0 x 1.3 mm Surface-mount Case No Matching Circuit Required Complies with Directive 2002/95/EC (RoHS) Meets AEC-Q200 criteria Pb Maximum Ratings at +25 °C Unless Stated Otherwise Rating Value Maximum Input Power Level +10 DC Voltage 3 Specification Temperature Range -40 to +105 Operable Temperature Range -45 to +125 Storage Temperature Range -40 to +85 Unit.

SF2434E-muRata.pdf

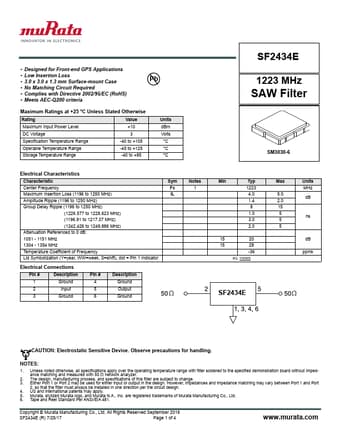

Preview of SF2434E PDF
SF2434E Datasheet Preview Page 2 SF2434E Datasheet Preview Page 3

Datasheet Details

Part number:

SF2434E

Manufacturer:

muRata

File Size:

209.51 KB

Description:

1223mhz saw filter.
