3N60 Datasheet, Mosfet, nELL

3N60 Features

  • Mosfet RDS(ON) = 3.6Ω@VGS = 10V Ultra low gate charge(13nC max.) Low reverse transfer capacitance (CRSS = 5.5pF typical) Fast switching capability 100% avalanche energy specified Improved dv/d

PDF File Details

Part number:

3N60

Manufacturer:

nELL

File Size:

416.80kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The Nell 3N60 is a three-terminal silicon device with current conduction capability of 3A, fast switching speed, low on-state resista

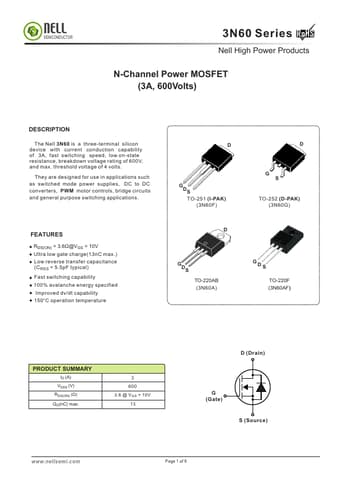

Datasheet Preview: 3N60 📥 Download PDF (416.80kb)
Page 2 of 3N60 Page 3 of 3N60

3N60 Application

  • Applications such as switched mode power supplies, DC to DC converters, PWM motor controls, bridge circuits and general purpose switching applicatio
