NST120D Rectifier Diode

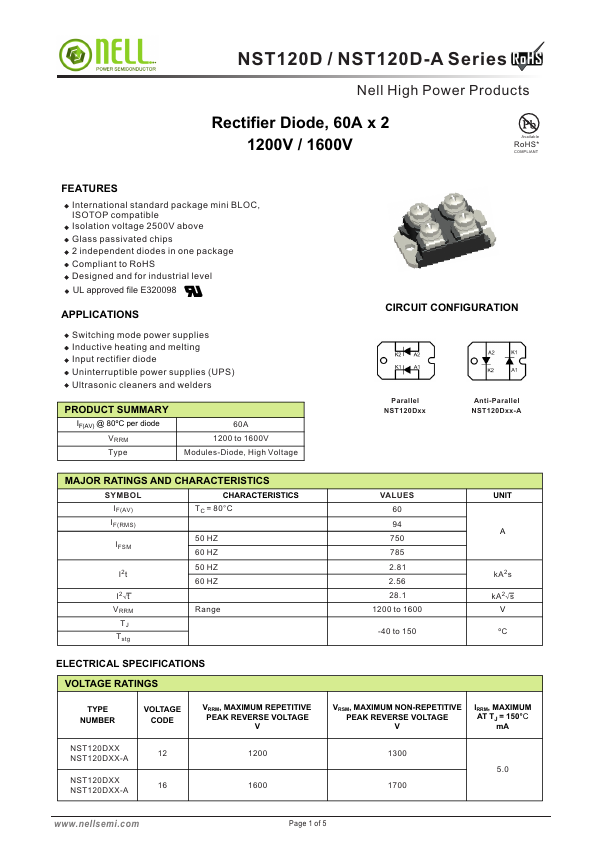

📥 Download Datasheet Datasheet Preview Page 1

Description

NST120D / NST120D-A Series RRooHHSS Nell High Power Products Rectifier Diode, 60A x 2 1200V / 1600V Available RoHS * COMPLIANT .

📥 Download Datasheet

Preview of NST120D PDF

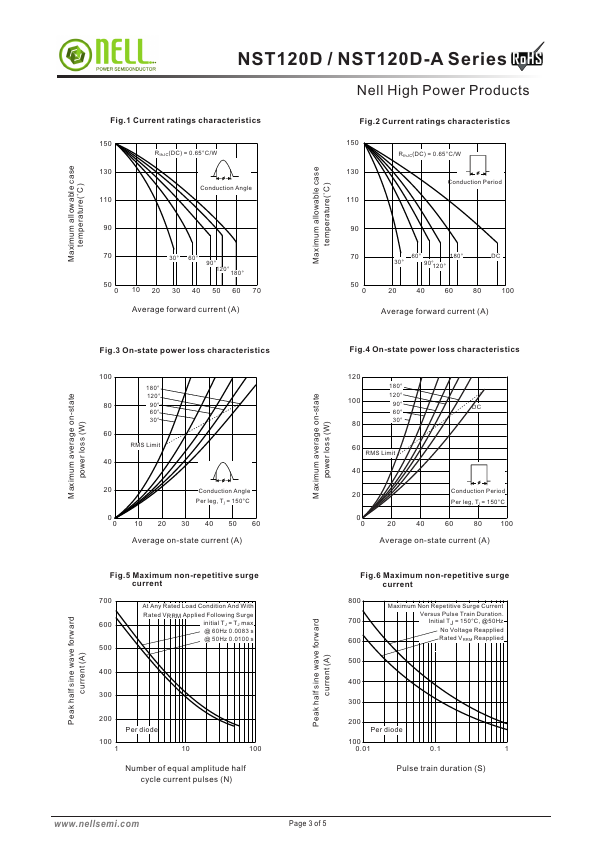

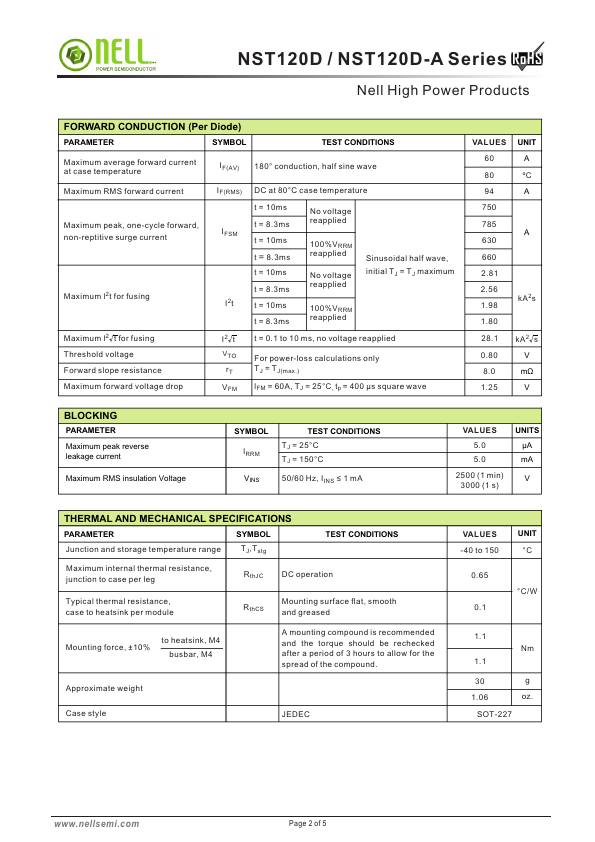

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NST120D
Manufacturer
nELL
File Size
680.96 KB
Datasheet
NST120D-nELL.pdf
Description
Rectifier Diode

Applications

* Switching mode power supplies Inductive heating and melting Input rectifier diode Uninterruptible power supplies (UPS) Ultrasonic cleaners and welders PRODUCT SUMMARY IF(AV) @ 80ºC per diode VRRM Type 60A 1200 to 1600V Modules-Diode, High Voltage CIRCUIT CONFIGURATION Parallel NST120Dxx Anti-Pa
