NST120F06-A - Ultrafast Soft Recovery Diode

This page provides the datasheet information for the NST120F06-A, a member of the NST120F06 Ultrafast Soft Recovery Diode family.

Datasheet Summary

Description

This SOT-227 modules with FRED rectifier are available in two basic configurations.

They are the antiparallel and the parallel configurations.

The antiparallel configuration NST120F06-A is used for simple series rectifier and high voltage application.

Features

  • Fast recovery time characteristic Electrically isolated base plate Large creepage distance between terminal Simplified mechanical designs, rapid assembly Compliant to RoHS Designed and for industrial level Planar FRED Chip.

📥 Download Datasheet

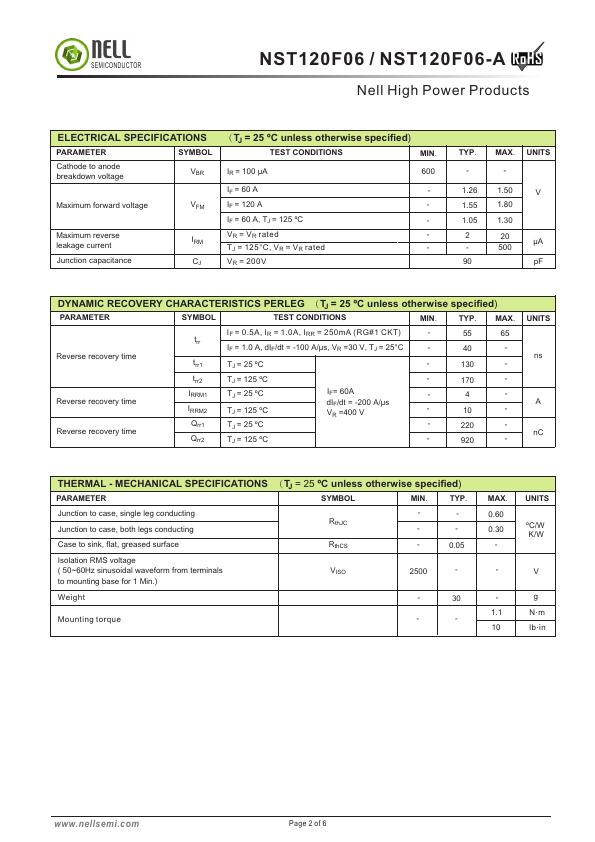

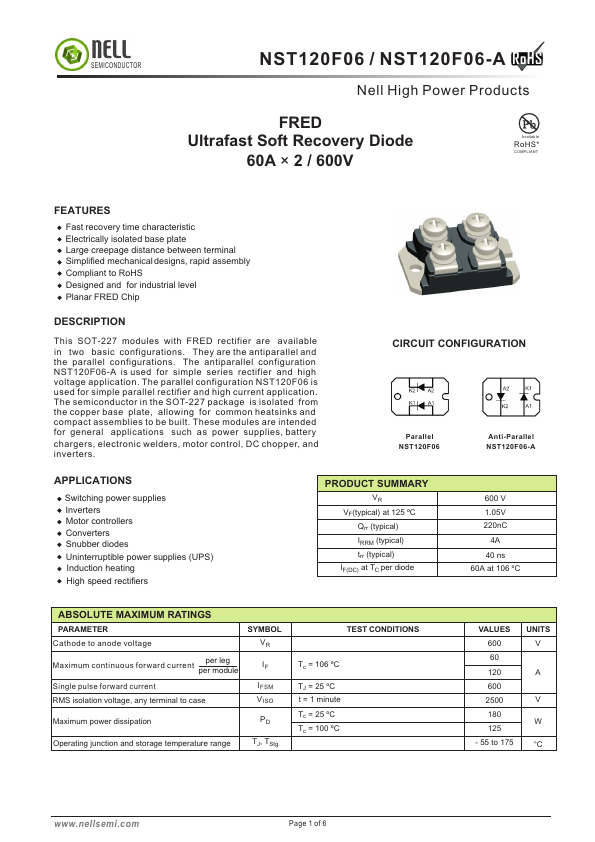

Datasheet preview – NST120F06-A

Datasheet Details

Part number NST120F06-A
Manufacturer nELL
File Size 419.33 KB
Description Ultrafast Soft Recovery Diode
Datasheet download datasheet NST120F06-A Datasheet

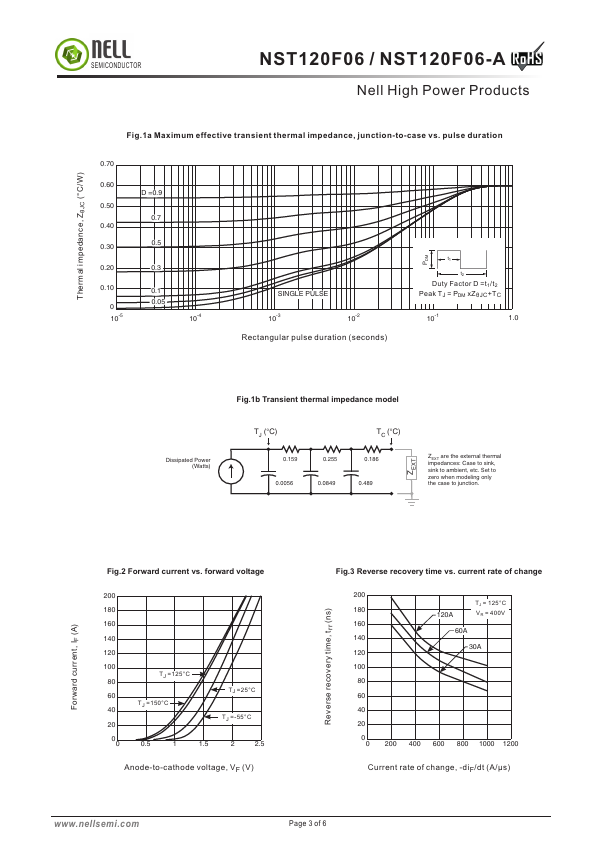

Additional preview pages of the NST120F06-A datasheet.
