NST120F06 Datasheet - nELL

NST120F06 - Ultrafast Soft Recovery Diode

This SOT-227 modules with FRED rectifier are available in two basic configurations.

They are the antiparallel and the parallel configurations.

The antiparallel configuration NST120F06-A is used for simple series rectifier and high voltage application.

The parallel configuration NST120F06 is used for

NST120F06-nELL.pdf

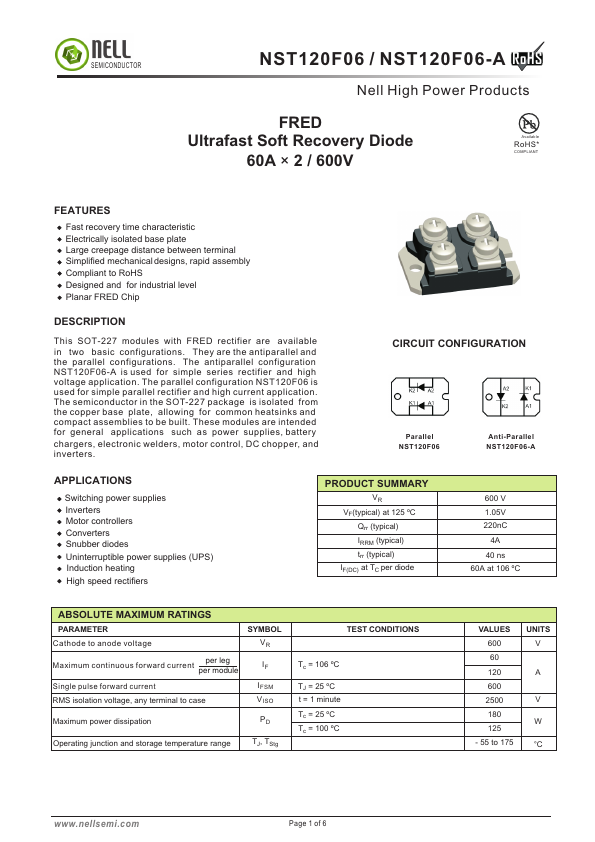

Preview of NST120F06 PDF

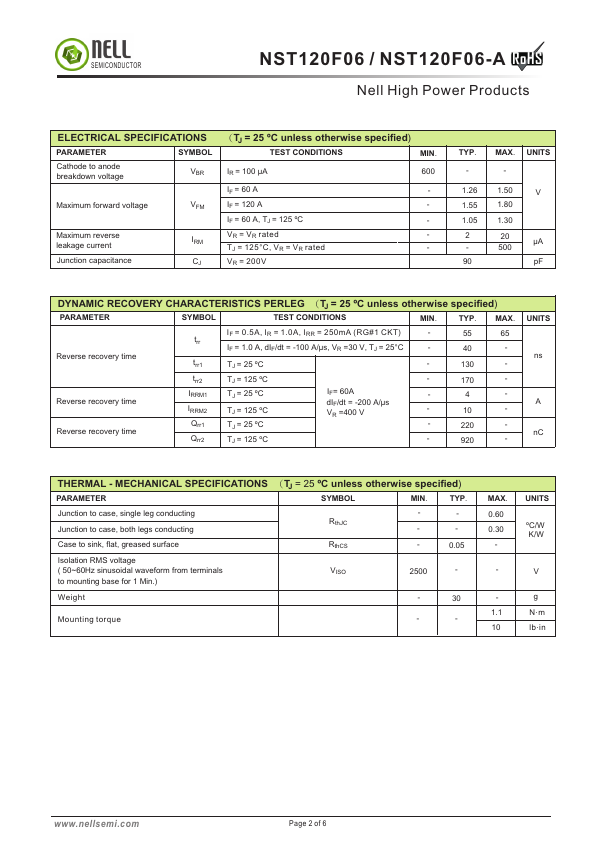

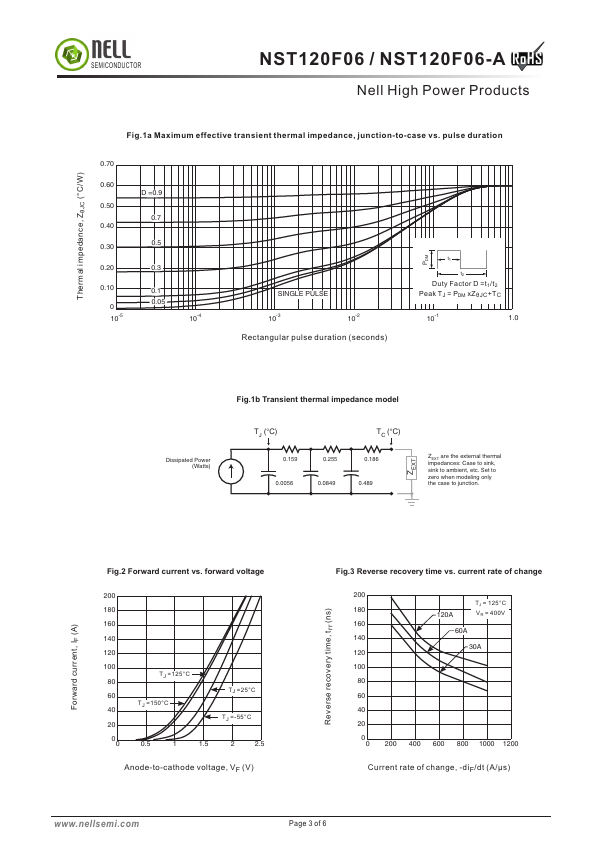

NST120F06 Datasheet Preview Page 2 NST120F06 Datasheet Preview Page 3

Datasheet Details

Part number:

NST120F06

Manufacturer:

nELL

File Size:

419.33 KB

Description:

Ultrafast soft recovery diode.
