LN1121

Ultra low Power Consumption Low Dropout CMOS Voltage Regulators

LN1121 Features

* Output Voltage Range: 1.2V to 5.0V (selectable in 100mV steps)

* Highly Accurate: 2%

* Dropout Voltage: 160mV @ 100mA (3.0V type)

* Low Power Consumption: 1μA (TYP.)

* Maximum Output Current : 250mA (Vin≥Vout+1V)

* Internal protector: current limiter and short protector

LN1121 General Description

The LN1121 series are precise, low power consumption, high voltage; positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The LN1121 consists of a current limiter circuit, a driver transisto.

LN1121 Datasheet (516.05 KB)

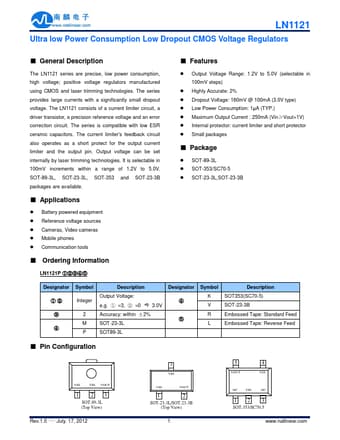

LN1121 Datasheet Preview — Preview of LN1121 PDF

Datasheet Details

Part number:

LN1121

Manufacturer:

natlinear

File Size:

516.05 KB

Description:

Ultra low power consumption low dropout cmos voltage regulators.
