LN1130 - High Ripple-Rejection Low Dropout CMOS Voltage Regulator

LN1130 Description

LN1130 High Ripple-Rejection Low Dropout CMOS Voltage Regulator * General .
The LN1130 Series is a positive voltage regulator with a low dropout voltage, high output voltage accuracy, and low current consumption developed base.

LN1130 Features

* Output voltage: 1.5 V to 5.5 V, selectable in 0.1 V steps.
* High-accuracy output voltage: 2.0%
* Low dropout voltage: 250mV typ. (3.0V output product, IOUT 100 mA)
* Low current co

LN1130 Applications

* Power supply for DVD and CD-ROM drives
* Power supply for battery-powered devices
* Power supply for personal communication devices
* Power supply for note PCs
* Ordering Information LN1130P ①②③④⑤

📥 Download Datasheet

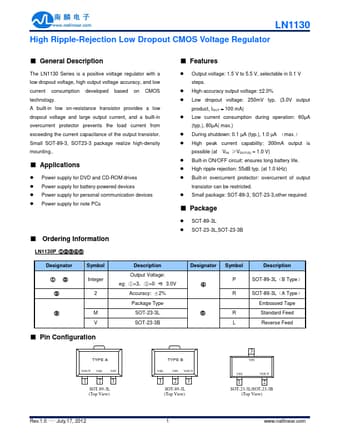

Preview of LN1130 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LN1130
Manufacturer
natlinear
File Size
473.54 KB
Datasheet
LN1130-natlinear.pdf
Description
High Ripple-Rejection Low Dropout CMOS Voltage Regulator
