LN1131 - 300mA Low Dropout CMOS Voltage Regulators

LN1131 Description

300mA Low Dropout CMOS Voltage Regulators LN1131 * General .
The LN1131 series are highly precise, low power consumption, positive voltage regulators manufactured using CMOS and laser trimming technologies.

LN1131 Features

* Output Voltage Range: 1.2V to 6.0V (selectable in 100mV steps)
* Highly Accurate: ±2%
* Dropout Voltage : 160mV @ 100mA (3.0V type)
* Low Power Consumption : 8.0μA (TYP. )
* Maximum Output Current : 300mA (V

LN1131 Applications

* Mobile phones
* Cordless phones
* Cameras, video recorders
* Portable games
* Portable AV equipment
* Reference voltage
* Battery powered equipment
* Ordering Information LN1131 P ③④⑤⑥ ①②

📥 Download Datasheet

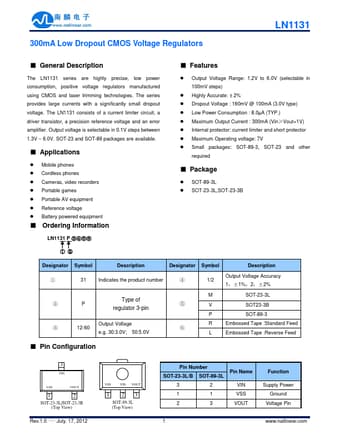

LN1131 Datasheet Preview — Preview of LN1131 PDF

Datasheet Details

Part number: LN1131
Manufacturer: natlinear
File Size: 459.70 KB
Datasheet: LN1131-natlinear.pdf
Description: 300mA Low Dropout CMOS Voltage Regulators
