1PS70SB20-Q Datasheet PDF - nexperia Schottky barrier diode Specs

1PS70SB20-Q - Schottky barrier diode

Datasheet Summary

Description

Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

Features

Low forward voltage.
Low capacitance.
Qualified according to AEC-Q101 and recommended for use in automotive.

Datasheet Details

Part number	1PS70SB20-Q
Manufacturer	nexperia
File Size	174.09 KB
Description	Schottky barrier diode
Datasheet	1PS70SB20-Q Datasheet

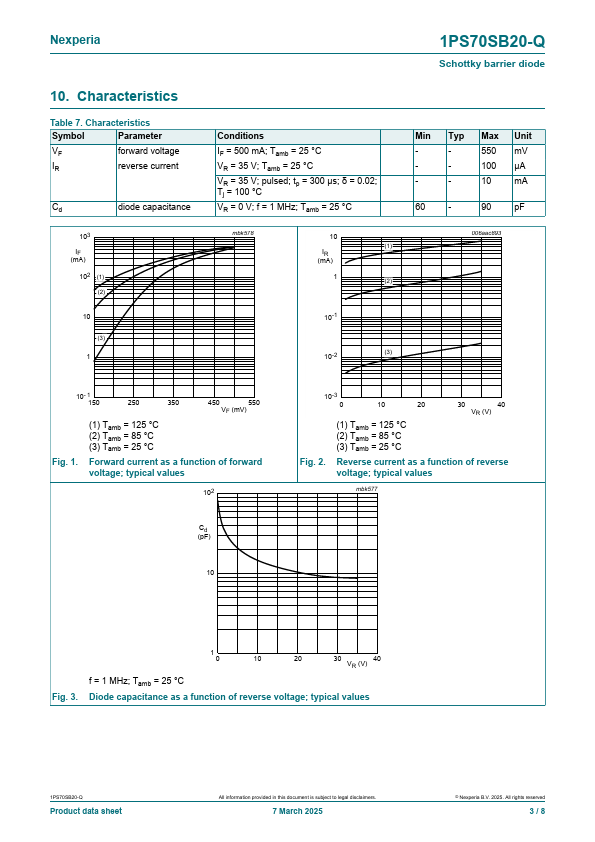

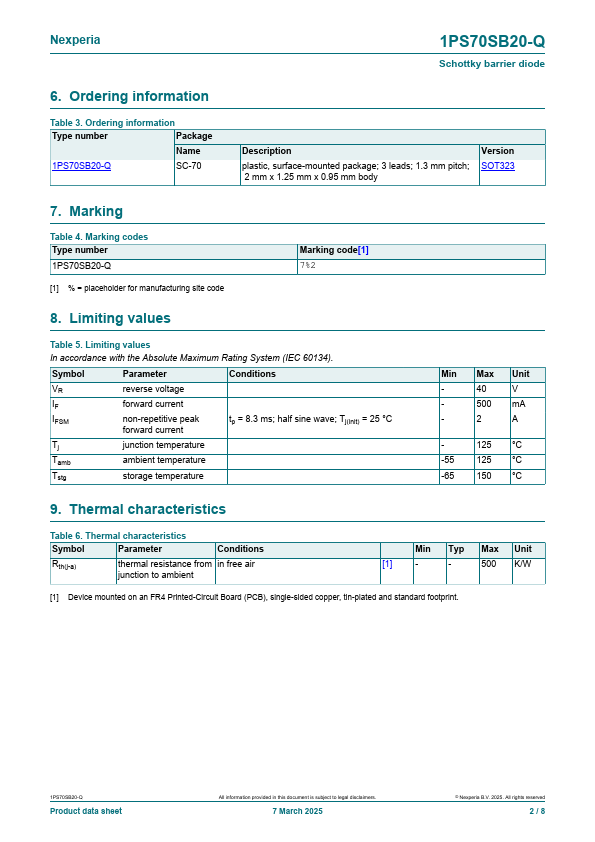

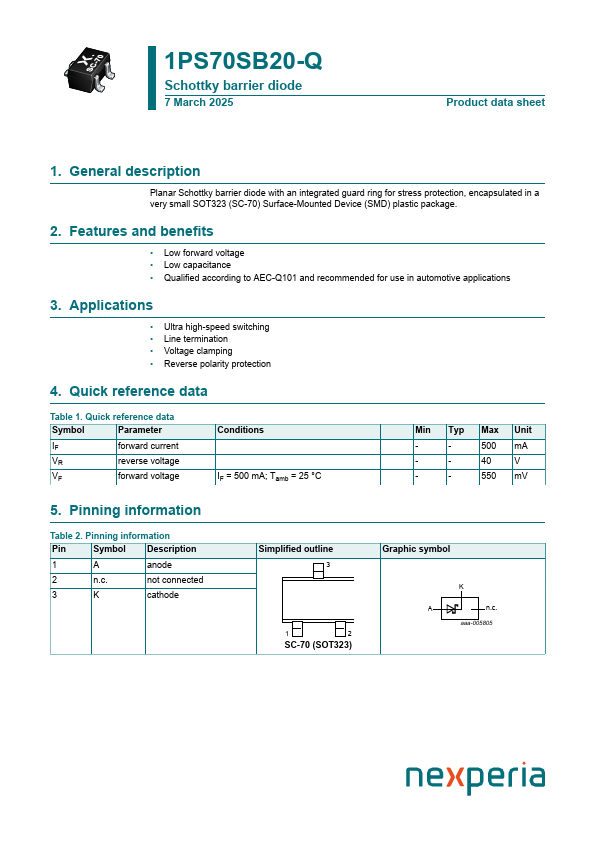

Additional preview pages of the 1PS70SB20-Q datasheet.

📁 Similar Datasheet

1PS70SB20 - Schottky barrier single diode (NXP)

1PS70SB10 - Schottky barrier single diode (NXP)

1PS70SB14 - Dual Schottky barrier diode (NXP)

1PS70SB15 - Dual Schottky barrier diode (NXP)

1PS70SB16 - Dual Schottky barrier diode (NXP)

1PS70SB40 - Schottky barrier double diodes (NXP)

1PS70SB44 - Schottky barrier double diodes (NXP)

1PS70SB45 - Schottky barrier double diodes (NXP)

1PS70SB46 - Schottky barrier double diodes (NXP)

1PS70SB82 - Schottky barrier double diodes (NXP)

Full PDF Text Transcription

Click to expand full text

1PS70SB20-Q Schottky barrier diode 7 March 2025 Product data sheet 1. General description Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • Low forward voltage • Low capacitance • Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications • Ultra high-speed switching • Line termination • Voltage clamping • Reverse polarity protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF forward current VR reverse voltage VF forward voltage Conditions IF = 500 mA; Tamb = 25 °C Min Typ Max Unit - - 500 mA - - 40 V - - 550 mV 5. Pinning information Table 2.
