1PS70SB40-Q - General-purpose Schottky diode

Datasheet Summary

Description

General-purpose Schottky diode in a small SOT323 Surface-Mounted Device (SMD) plastic package.

Features

High switching speed.
Low leakage current.
High breakdown voltage.
Low capacitance.
Qualified according to AEC-Q101 and recommended for use in automotive.

Datasheet Details

Part number	1PS70SB40-Q
Manufacturer	nexperia
File Size	182.05 KB
Description	General-purpose Schottky diode
Datasheet	1PS70SB40-Q Datasheet

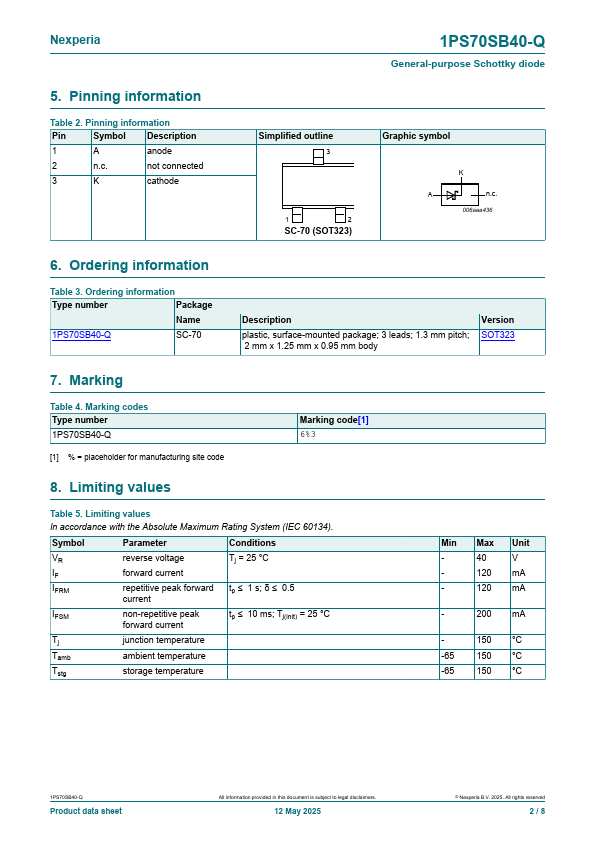

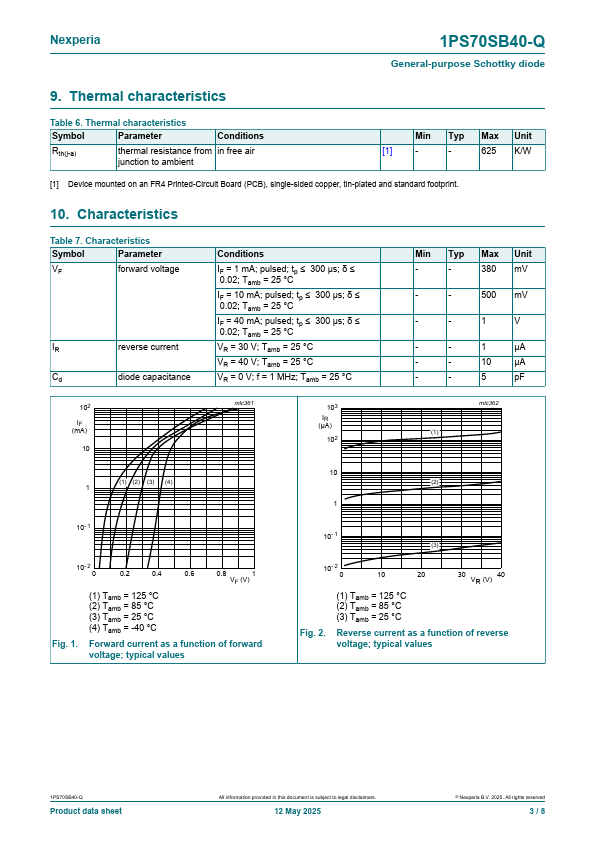

Additional preview pages of the 1PS70SB40-Q datasheet.

📁 Similar Datasheet

1PS70SB40 - Schottky barrier double diodes (NXP)

1PS70SB44 - Schottky barrier double diodes (NXP)

1PS70SB45 - Schottky barrier double diodes (NXP)

1PS70SB46 - Schottky barrier double diodes (NXP)

1PS70SB10 - Schottky barrier single diode (NXP)

1PS70SB14 - Dual Schottky barrier diode (NXP)

1PS70SB15 - Dual Schottky barrier diode (NXP)

1PS70SB16 - Dual Schottky barrier diode (NXP)

1PS70SB20 - Schottky barrier single diode (NXP)

1PS70SB82 - Schottky barrier double diodes (NXP)

Full PDF Text Transcription

Click to expand full text

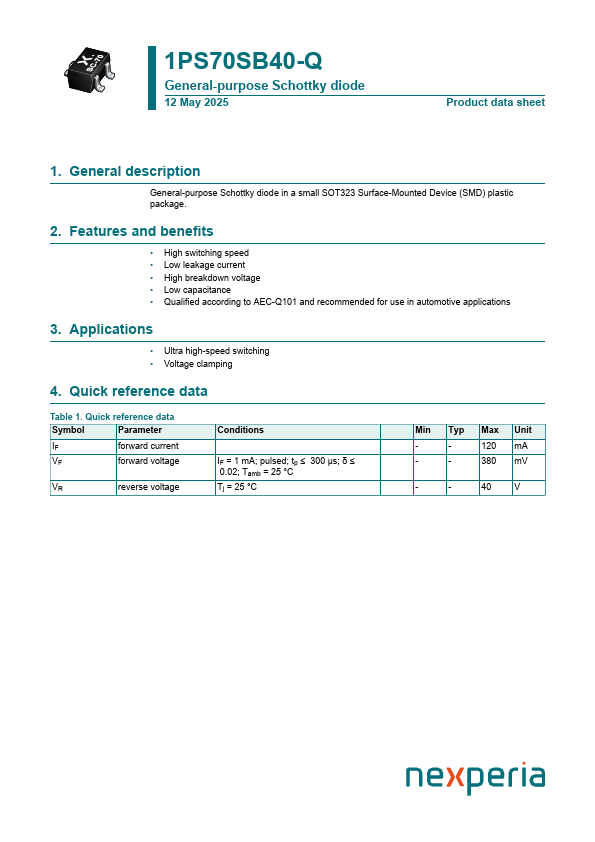

1PS70SB40-Q General-purpose Schottky diode 12 May 2025 Product data sheet 1. General description General-purpose Schottky diode in a small SOT323 Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • High switching speed • Low leakage current • High breakdown voltage • Low capacitance • Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications • Ultra high-speed switching • Voltage clamping 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF forward current VF forward voltage VR reverse voltage Conditions IF = 1 mA; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C Tj = 25 °C Min Typ Max Unit - - 120 mA - - 380 mV - - 40 V Nexperia 1PS70SB40-Q General-purpose Schottky diode 5.
