1PS70SB20 - Schottky barrier diode

Datasheet Summary

Description

Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

2.

Features

  • Low forward voltage.
  • Low capacitance.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

Datasheet preview – 1PS70SB20

Datasheet Details

Part number 1PS70SB20
Manufacturer nexperia
File Size 2.05 MB
Description Schottky barrier diode
Datasheet download datasheet 1PS70SB20 Datasheet

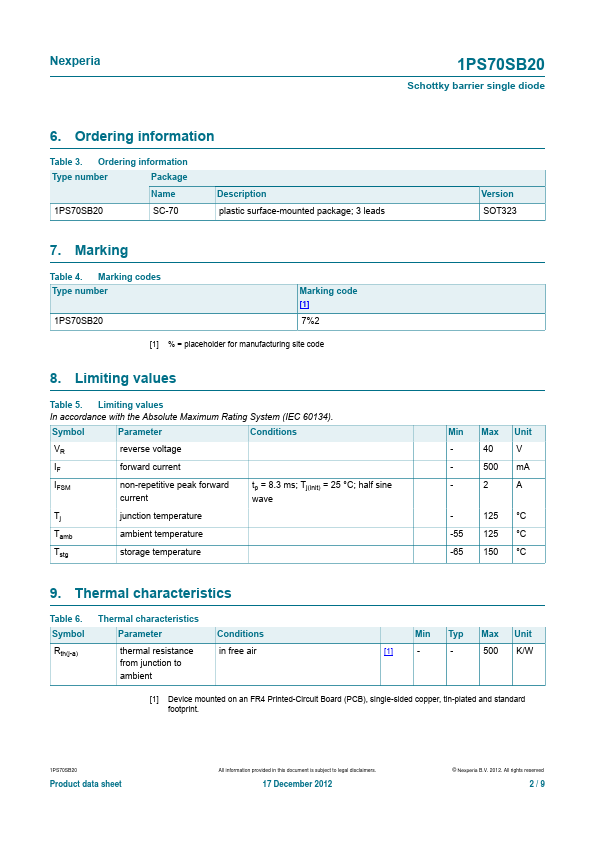

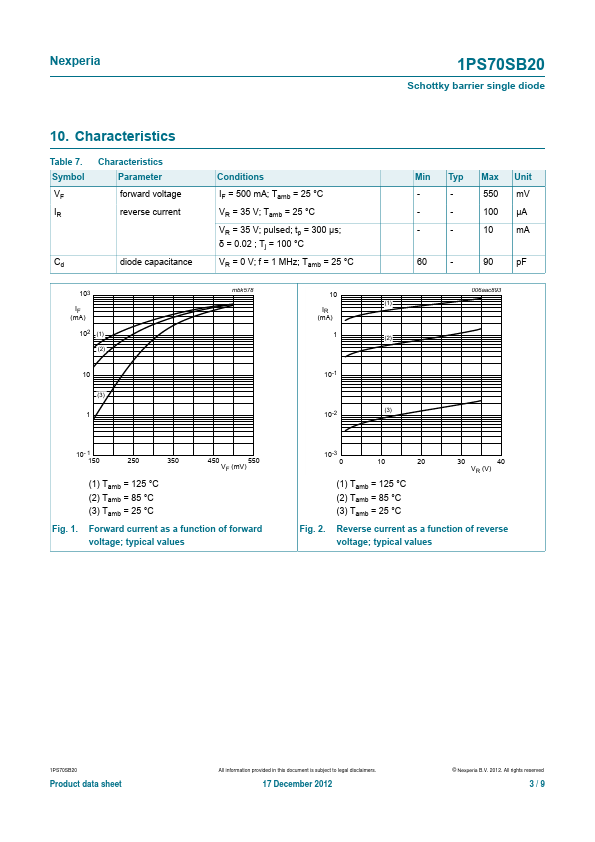

Additional preview pages of the 1PS70SB20 datasheet.

📁 Similar Datasheet

  • 1PS70SB20 - Schottky barrier single diode (NXP)
  • 1PS70SB10 - Schottky barrier single diode (NXP)
  • 1PS70SB14 - Dual Schottky barrier diode (NXP)
  • 1PS70SB15 - Dual Schottky barrier diode (NXP)
  • 1PS70SB16 - Dual Schottky barrier diode (NXP)
  • 1PS70SB40 - Schottky barrier double diodes (NXP)
  • 1PS70SB44 - Schottky barrier double diodes (NXP)
  • 1PS70SB45 - Schottky barrier double diodes (NXP)
  • 1PS70SB46 - Schottky barrier double diodes (NXP)
  • 1PS70SB82 - Schottky barrier double diodes (NXP)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

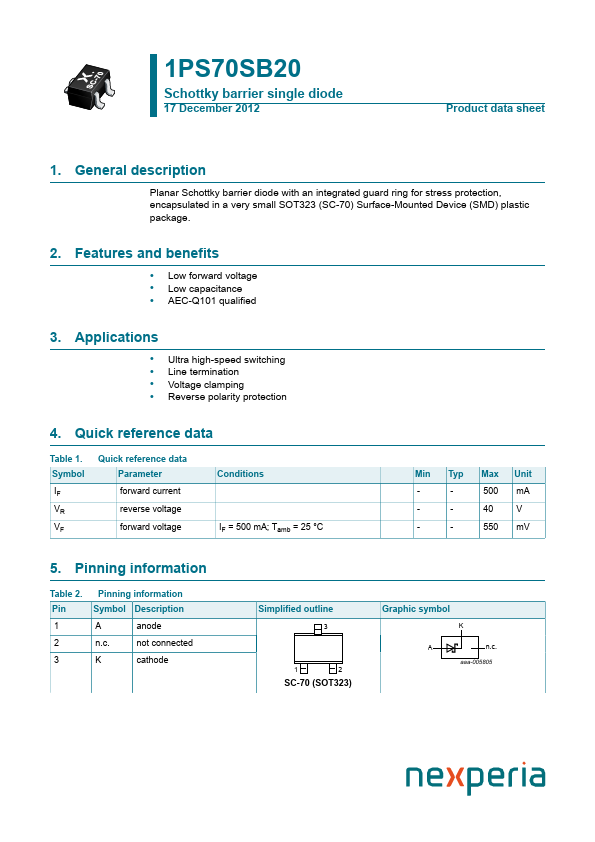

1PS70SB20 Schottky barrier single diode 17 December 2012 Product data sheet 1. General description Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • Low forward voltage • Low capacitance • AEC-Q101 qualified 3. Applications • Ultra high-speed switching • Line termination • Voltage clamping • Reverse polarity protection 4. Quick reference data Table 1. Symbol IF VR VF Quick reference data Parameter forward current reverse voltage forward voltage Conditions IF = 500 mA; Tamb = 25 °C Min Typ Max Unit - - 500 mA - - 40 V - - 550 mV 5. Pinning information Table 2.
