1PS79SB10 - Schottky barrier single diode

Name: 1PS79SB10
SKU: 1PS79SB10-1593359

nexperia

📥 Download Datasheet

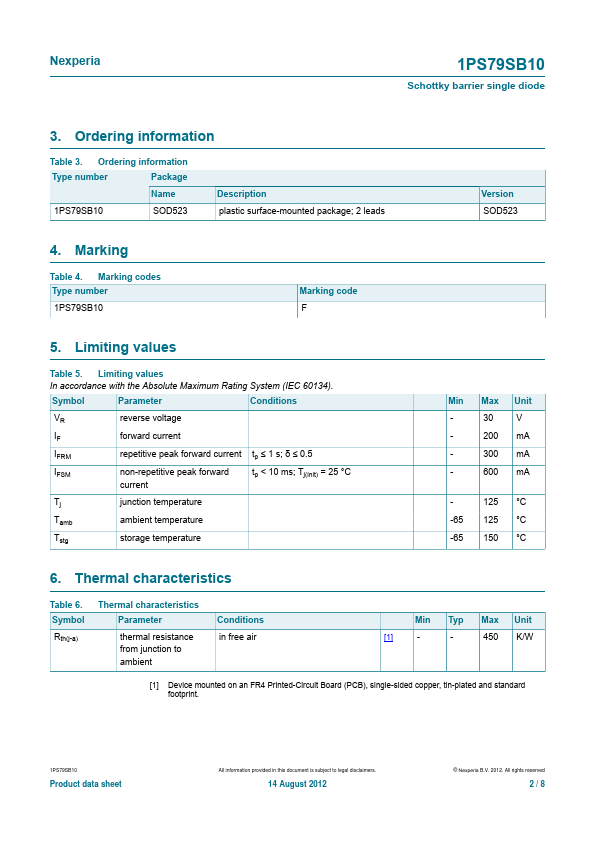

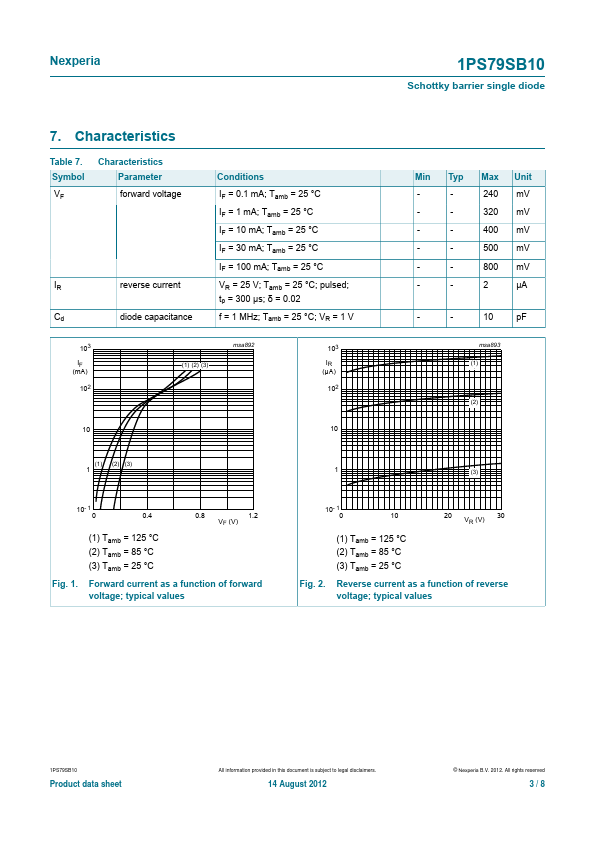

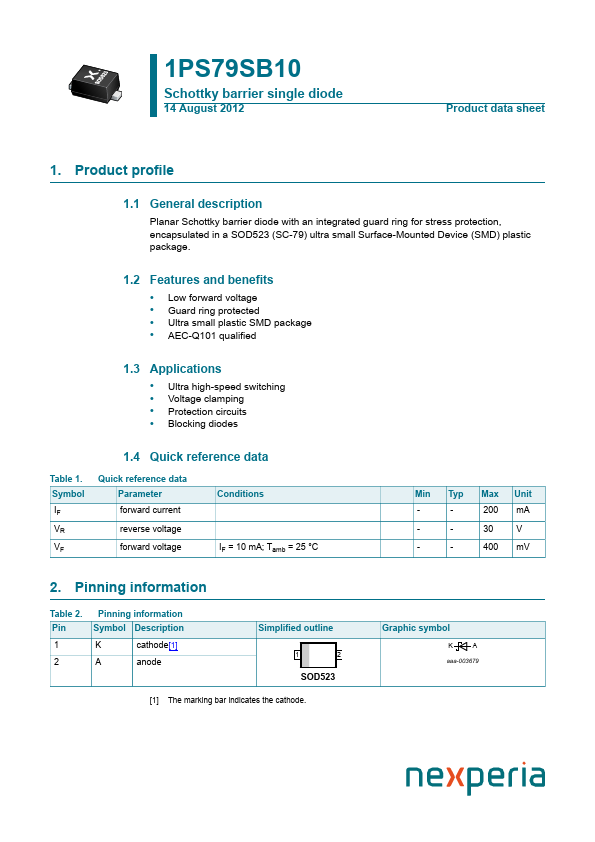

1PS79SB10 Datasheet Preview — Preview of 1PS79SB10 PDF

Datasheet Details

Part number	1PS79SB10
Manufacturer	nexperia
File Size	1.84 MB
Description	Schottky barrier single diode
Datasheet	1PS79SB10-nexperia.pdf

1PS79SB10 Product details

Description

Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a SOD523 (SC-79) ultra small Surface-Mounted Device (SMD) plastic package.

Features

Low forward voltage.
Guard ring protected.
Ultra small plastic SMD package.
AEC-Q101 qualified 1.3.
