1PS79SB10-Q - Schottky barrier diode

nexperia

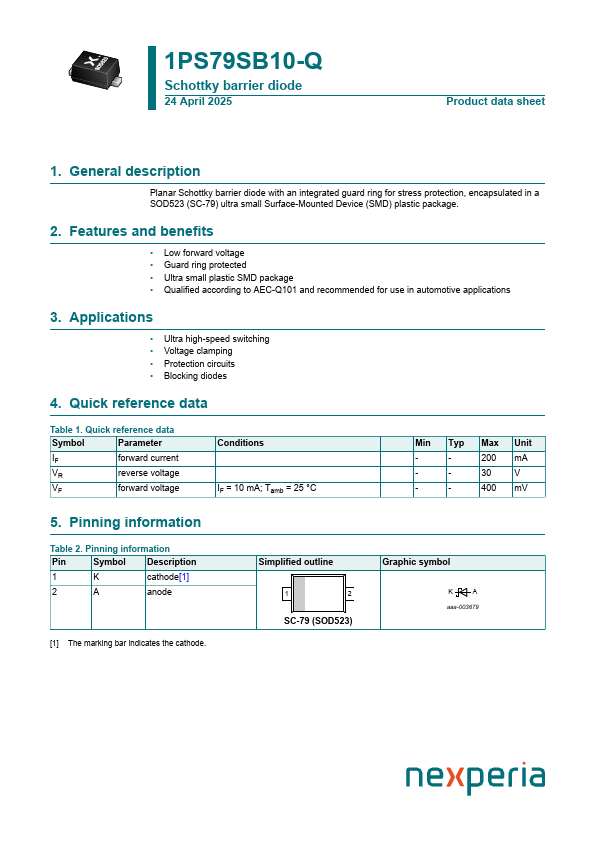

1PS79SB10-Q Datasheet Preview — Preview of 1PS79SB10-Q PDF

Datasheet Details

Part number	1PS79SB10-Q
Manufacturer	nexperia ↗
File Size	166.89 KB
Description	Schottky barrier diode
Datasheet	1PS79SB10-Q-nexperia.pdf

1PS79SB10-Q Product details

Description

Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a SOD523 (SC-79) ultra small Surface-Mounted Device (SMD) plastic package.

Features

Low forward voltage.
Guard ring protected.
Ultra small plastic SMD package.
Qualified according to AEC-Q101 and recommended for use in automotive.
