74AHC125 Quad buffer/line driver

74AHC125 Description

74AHC125; 74AHCT125 Quad buffer/line driver; 3-state Rev.8 * 28 April 2025 Product data sheet 1.General .
The 74AHC125; 74AHCT125 is a quad buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE).

74AHC125 Features

* Wide supply voltage range from 2.0 V to 5.5 V
* Overvoltage tolerant inputs to 5.5 V
* High noise immunity
* CMOS low power dissipation
* Balanced propagation delays
* All inputs have a Schmitt-trigger action
* Input levels:
* For 74A

📥 Download Datasheet

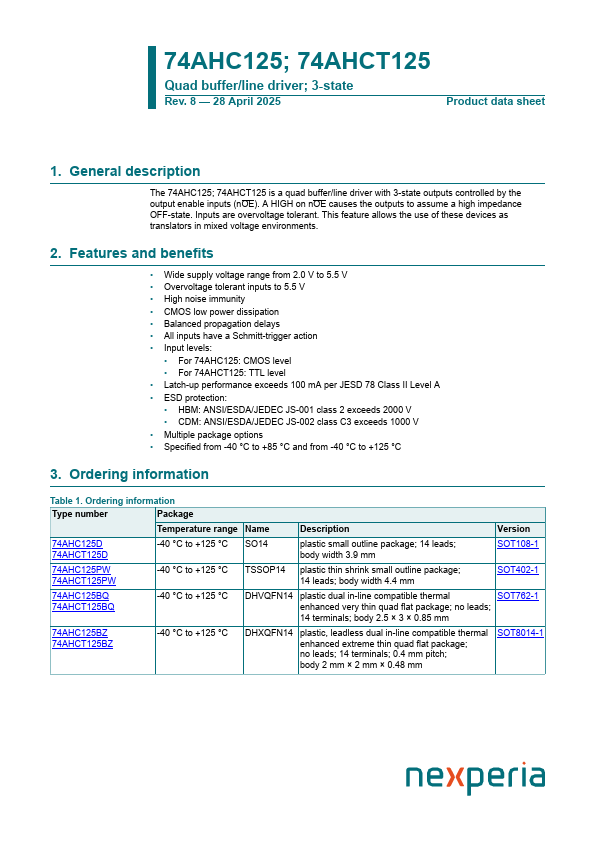

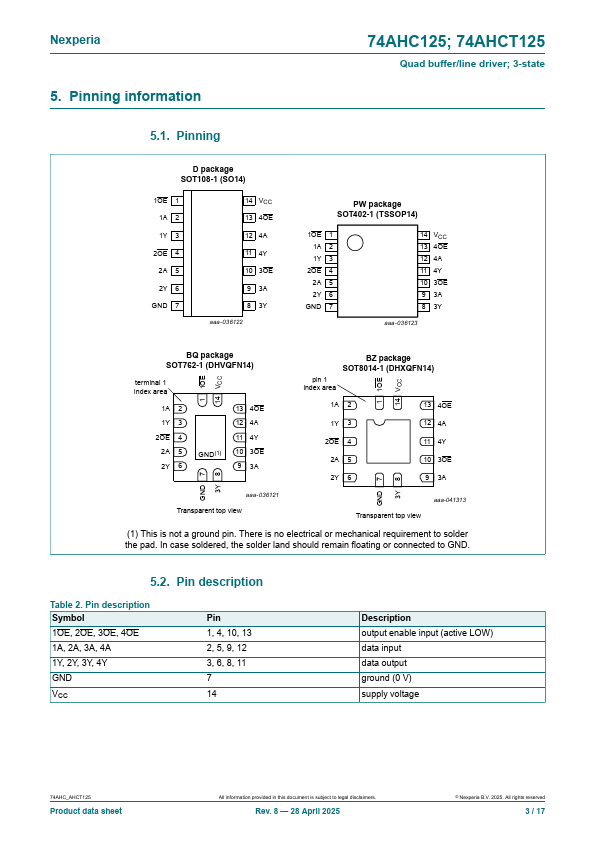

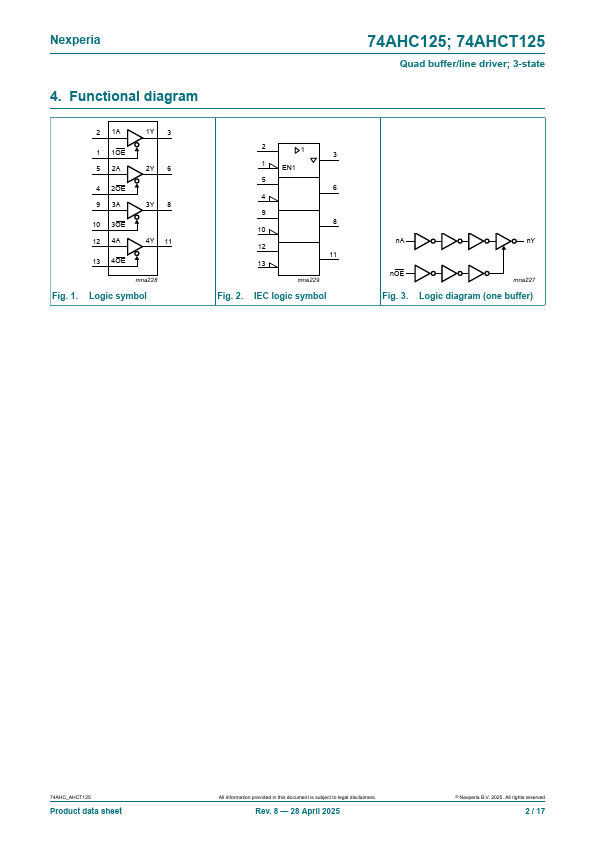

Preview of 74AHC125 PDF
