74AHC32PW

Quad 2-input OR gate

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Nexperia 74AHC32PW-Q100J IC GATE OR 4CH 2-INP 14TSSOP DigiKey 1913 1000 units
$0.16

74AHC32PW Datasheet (223.82 KB)

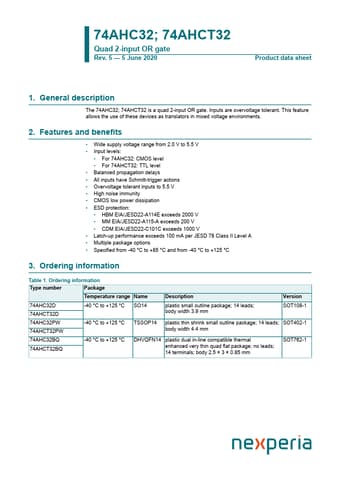

Preview of 74AHC32PW PDF Datasheet

Datasheet Details

Part number:

74AHC32PW

Manufacturer:

nexperia ↗

File Size:

223.82 KB

Description:

Quad 2-input or gate

74AHC32PW Features

* Wide supply voltage range from 2.0 V to 5.5 V

* Input levels:

* For 74AHC32: CMOS level

* For 74AHCT32: TTL level

* Balanced propagation delays

* All inputs have Schmitt-trigger actions

* Overvoltage tolerant inputs to 5.5 V

* High no
