74HC00 Datasheet, gate, nexperia

74HC00 Features

  • Gate
  • Wide supply voltage range from 2.0 to 6.0 V
  • CMOS low power dissipation
  • High noise immunity
  • Latch-up performance exceeds 100 mA per JESD 78 Class

PDF File Details

Part number:

74HC00

Manufacturer:

nexperia ↗

File Size:

235.10kb

Download:

📄 Datasheet

Description:

Quad 2-input nand gate. The 74HC00; 74HCT00 is a quad 2-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to i

Datasheet Preview: 74HC00 📥 Download PDF (235.10kb)

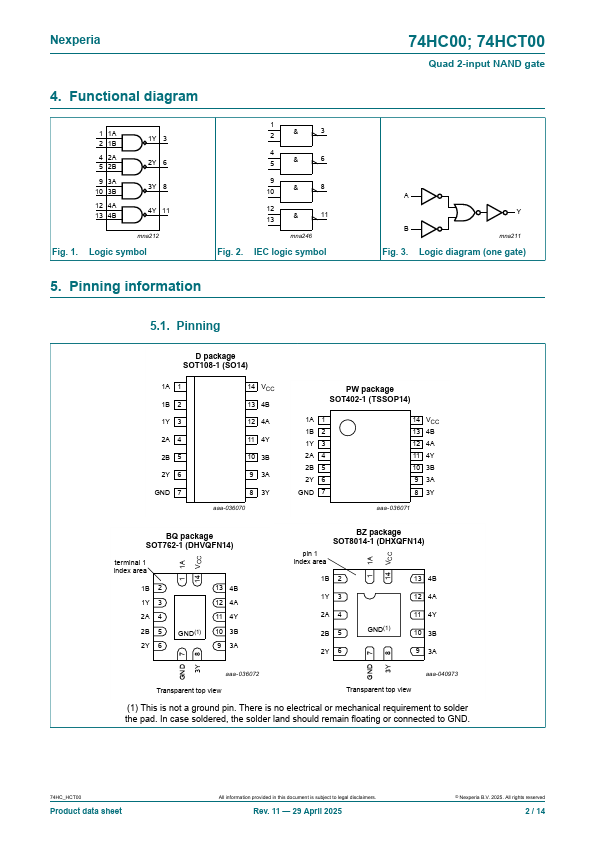

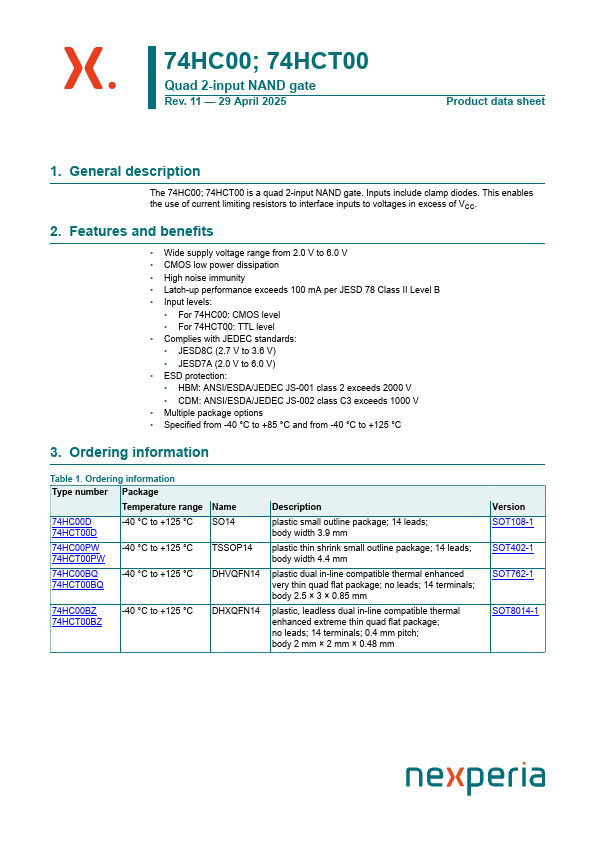

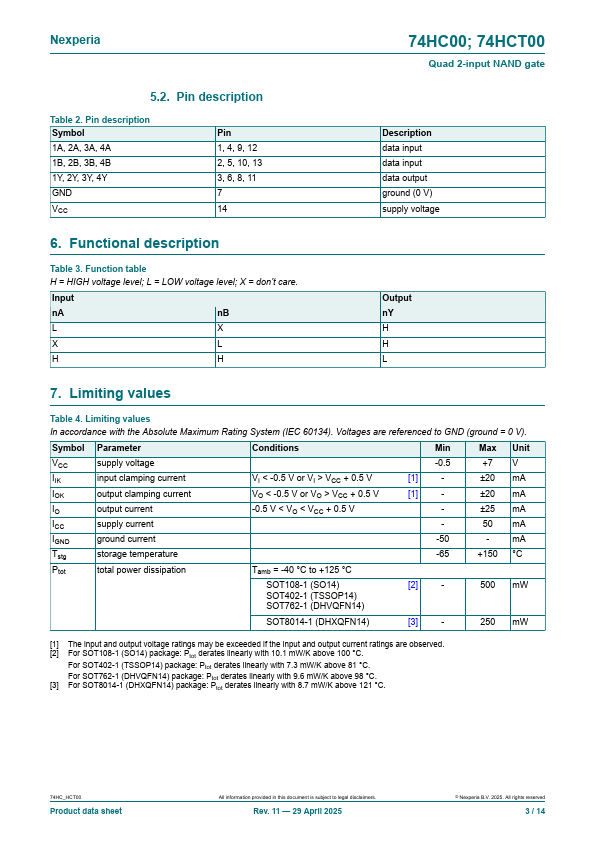

Page 2 of 74HC00 Page 3 of 74HC00
