74HC08D Datasheet, Gate, nexperia

74HC08D Features

  • Gate
  • Wide supply voltage range from 2.0 V to 6.0 V
  • CMOS low power dissipation
  • High noise immunity
  • Latch-up performance exceeds 100 mA per JESD 78 Clas

PDF File Details

Part number:

74HC08D

Manufacturer:

nexperia ↗

File Size:

237.82kb

Download:

📄 Datasheet

Description:

Quad 2-input and gate. The 74HC08; 74HCT08 is a quad 2-input AND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to in

Datasheet Preview: 74HC08D 📥 Download PDF (237.82kb)

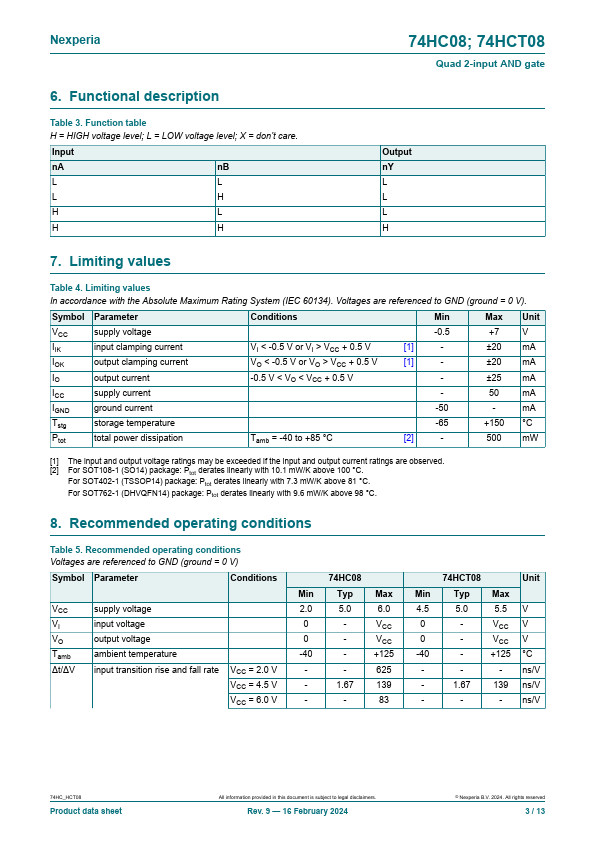

Page 2 of 74HC08D Page 3 of 74HC08D
