74HC109-Q100 Datasheet - nexperia

74HC109-Q100 Dual JK flip-flop

The 74HC109-Q100; 74HCT109-Q100 is a dual positive edge triggered JK flip-flop featuring individual nJ and nK inputs. It has clock (nCP) inputs, set (nSD) and reset (nRD) inputs and complementary nQ and nQ outputs. The set and reset are asynchronous active LOW inputs and operate independently of the.

74HC109-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from -40 °C to +85 °C and from -40 °C to +125 °C

* Input levels:

* For 74HC109-Q100: CMOS level

* For 74HCT109-Q100: TTL level

* J and K inputs for easy D-type flip-fl

74HC109-Q100 Datasheet (252.80 KB)

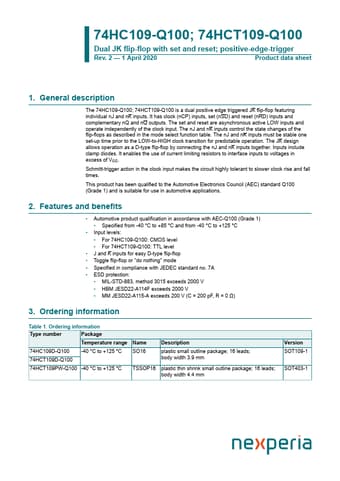

Preview of 74HC109-Q100 PDF
74HC109-Q100 Datasheet Preview Page 2 74HC109-Q100 Datasheet Preview Page 3

Datasheet Details

Part number:

74HC109-Q100

Manufacturer:

nexperia ↗

File Size:

252.80 KB

Description:

Dual jk flip-flop.
