74HC27BQ, 74HC27 Datasheet - nexperia

Datasheet Details

Part number:

74HC27BQ, 74HC27

Manufacturer:

nexperia ↗

File Size:

246.22 KB

Description:

Triple 3-input NOR gate

Note:

This datasheet PDF includes multiple part numbers: 74HC27BQ, 74HC27.
Please refer to the document for exact specifications by model.

Features

* Wide supply voltage range from 2.0 V to 6.0 V

* CMOS low power dissipation

* High noise immunity

* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B

* Complies with JEDEC standards:

* JESD8C (2.7 V to 3.6 V)

* JESD7A (2.0 V to

74HC27-nexperia.pdf

This datasheet PDF includes multiple part numbers: 74HC27BQ, 74HC27. Please refer to the document for exact specifications by model.

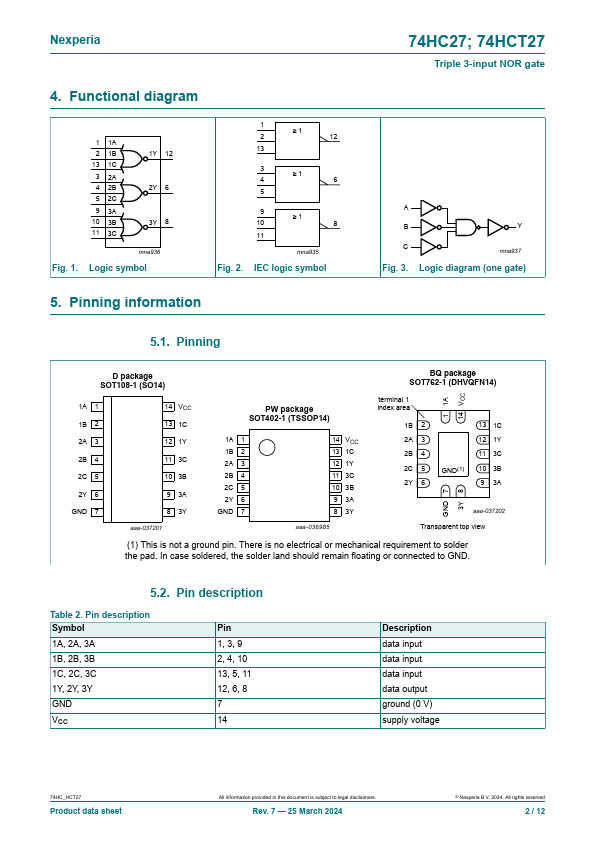

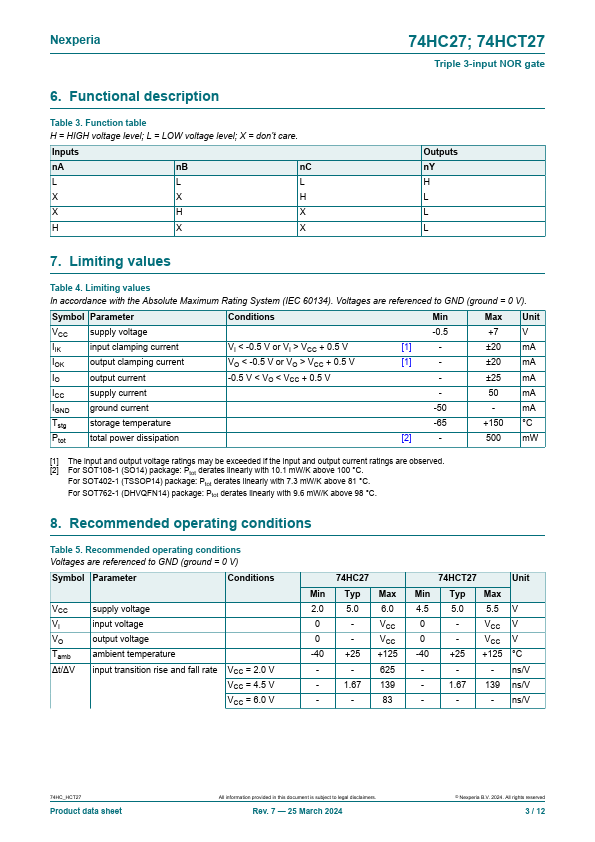

74HC27BQ Datasheet Preview Page 2 74HC27BQ Datasheet Preview Page 3

74HC27BQ, 74HC27, Triple 3-input NOR gate
