74HC27D, 74HC27 - Triple 3-input NOR gate

nexperia

📥 Download Datasheet

74HC27D Datasheet Preview — This datasheet PDF includes multiple part numbers: 74HC27D, 74HC27. Please refer to the document for exact specifications by model.

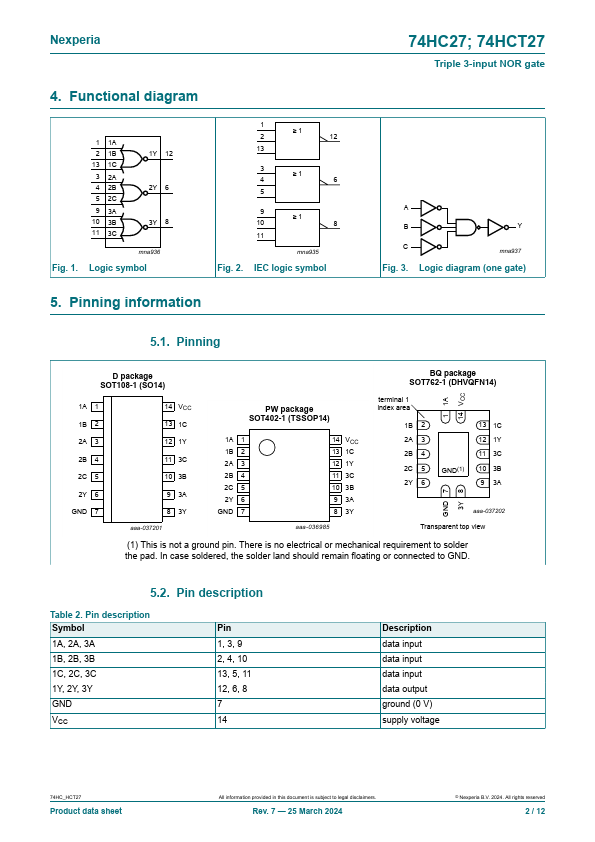

datasheet Preview Page 2

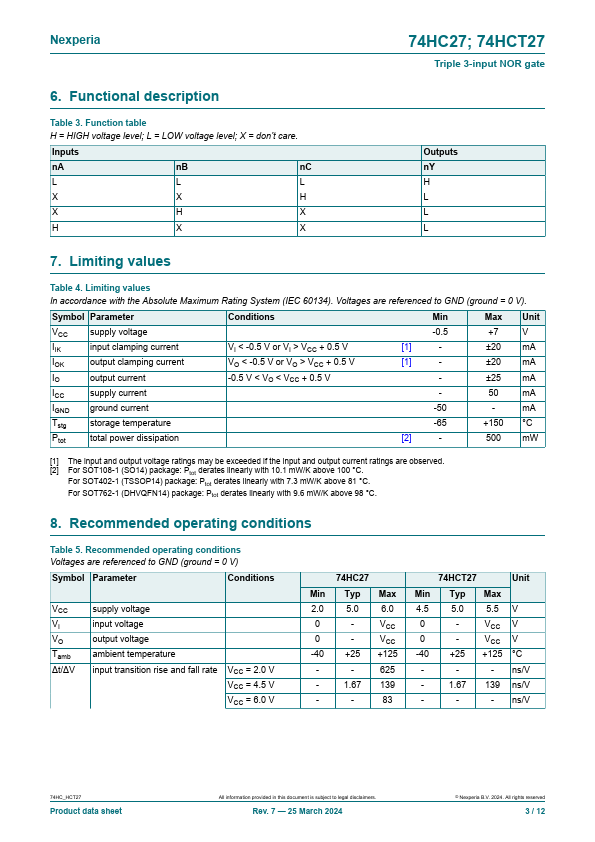

datasheet Preview Page 3

Datasheet Details

Part number	74HC27D, 74HC27
Manufacturer	nexperia ↗
File Size	246.22 KB
Description	Triple 3-input NOR gate
Datasheet	74HC27-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74HC27D, 74HC27. Please refer to the document for exact specifications by model.

74HC27D Product details

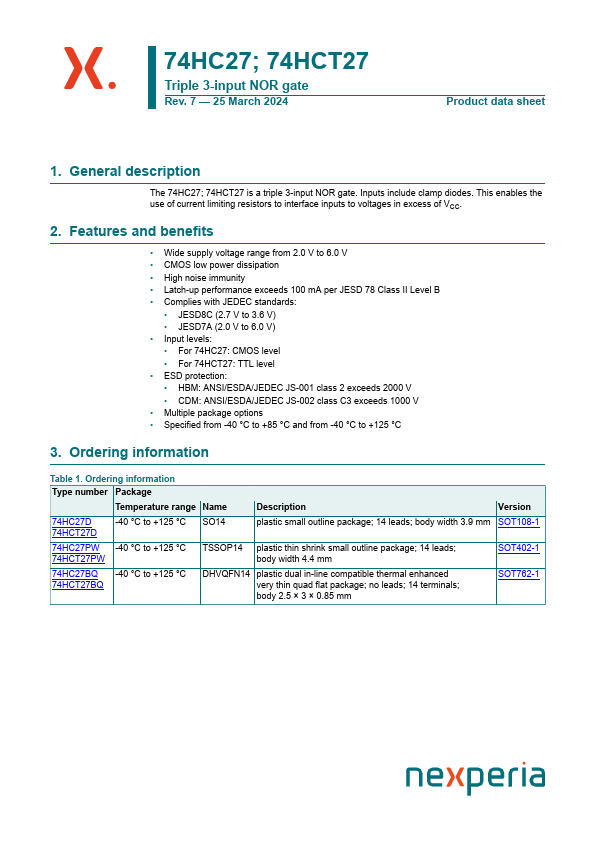

Description

The 74HC27; 74HCT27 is a triple 3-input NOR gate.

Features

Wide supply voltage range from 2.0 V to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Complies with JEDEC standards:.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
Input levels:.
For 74HC27: CMOS level.
For 74HCT27: TTL level.
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V.
CDM: A.
