74HC32 Datasheet, Gate, nexperia

74HC32 Features

  • Gate
  • Wide supply voltage range from 2.0 to 6.0 V
  • CMOS low power dissipation
  • High noise immunity
  • Latch-up performance exceeds 100 mA per JESD 78 Class

PDF File Details

Part number:

74HC32

Manufacturer:

nexperia ↗

File Size:

234.78kb

Download:

📄 Datasheet

Description:

Quad 2-input or gate. The 74HC32; 74HCT32 is a quad 2-input OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to int

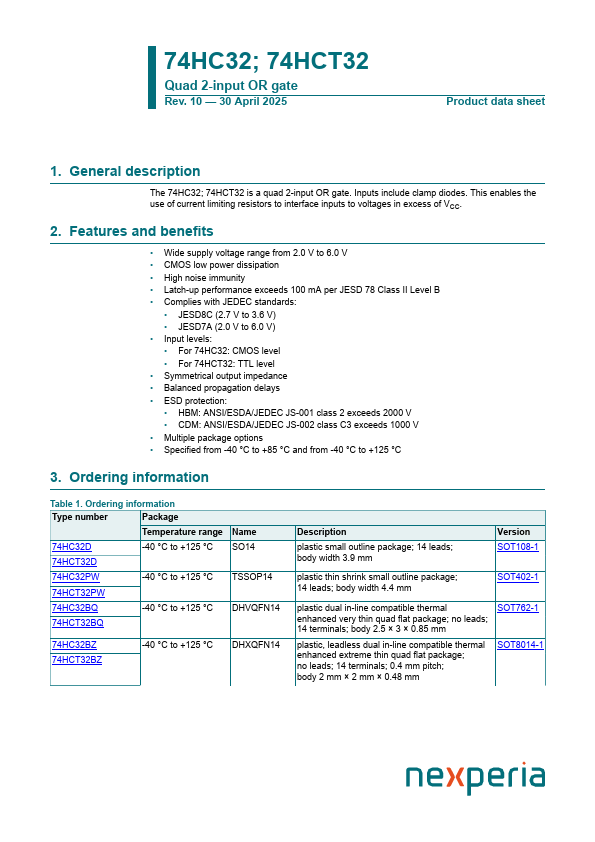

Datasheet Preview: 74HC32 📥 Download PDF (234.78kb)

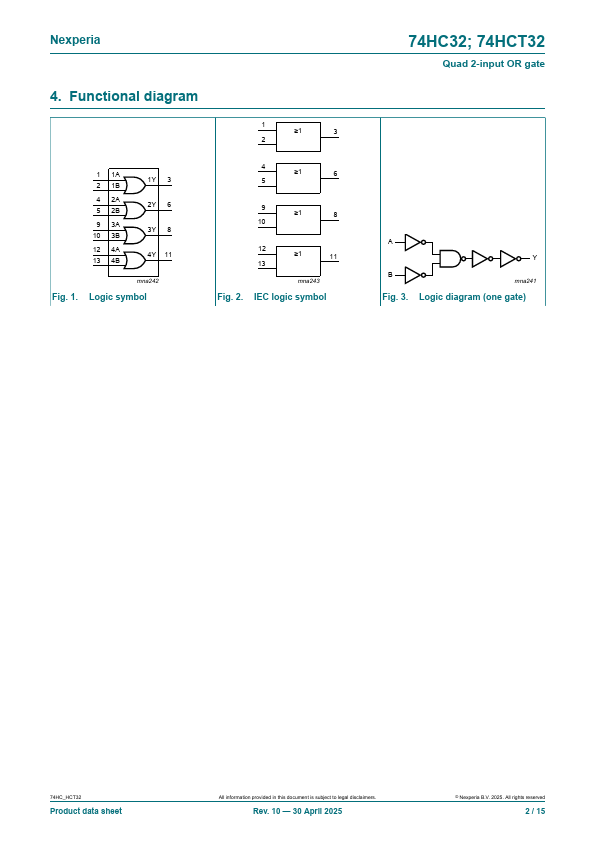

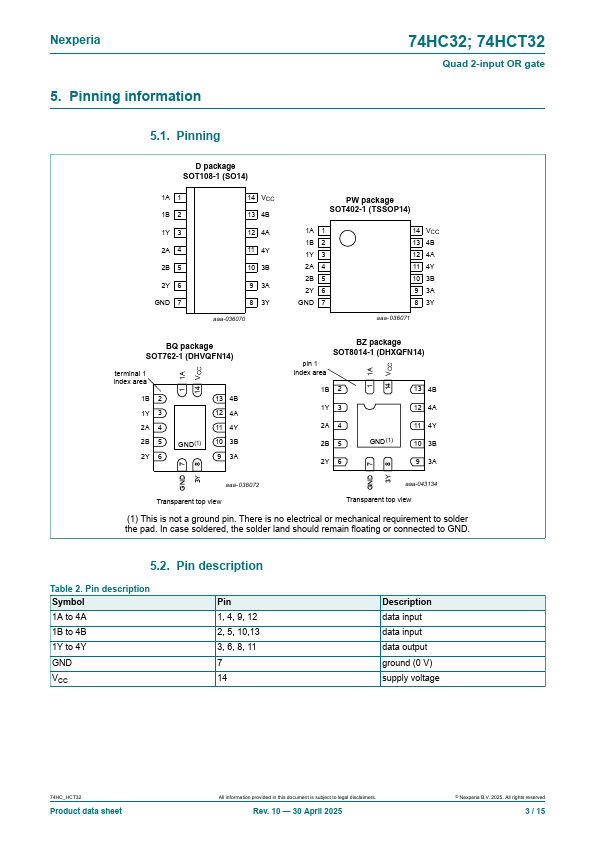

Page 2 of 74HC32 Page 3 of 74HC32
