74HCT4017

Johnson decade counter

74HCT4017 Features

* Wide supply voltage range from 2.0 V to 6.0 V

* CMOS low power dissipation

* High noise immunity

* Latch-up performance exceeds 100 mA per JESD 78 Class II Level B

* Complies with JEDEC standards:

* JESD8C (2.7 V to 3.6 V)

* JESD7A (2.0 V to

74HCT4017 General Description

The 74HC4017; 74HCT4017 is a 5-stage Johnson decade counter with 10 decoded outputs (Q0 to Q9), an output from the most significant flip-flop (Q5-9), two clock inputs (CP0 and CP1) and an overriding asynchronous master reset input (MR). The counter is advanced by either a LOW-to-HIGH transition at C.

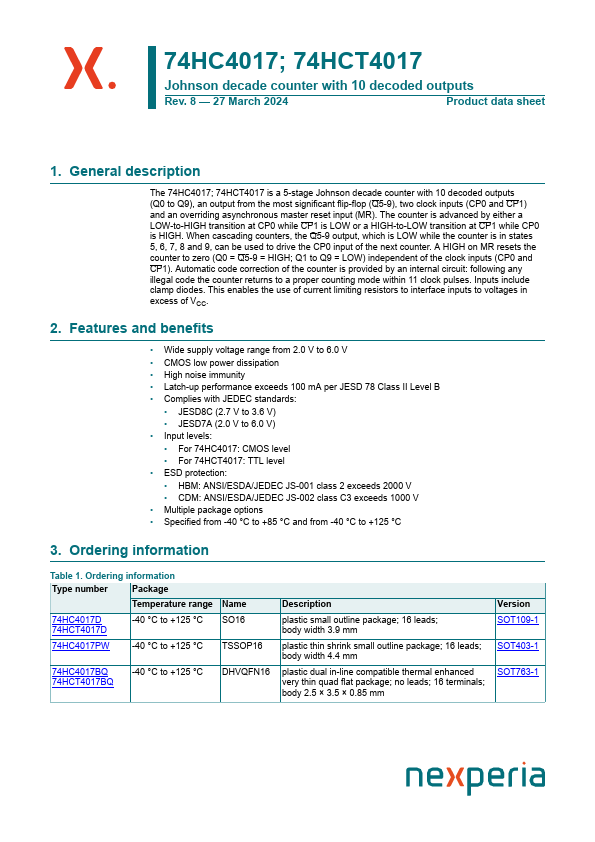

74HCT4017 Datasheet (305.30 KB)

Preview of 74HCT4017 PDF

Datasheet Details

Part number:

74HCT4017

Manufacturer:

nexperia ↗

File Size:

305.30 KB

Description:

Johnson decade counter.

📁 Related Datasheet

74HCT401 8-bit synchronous BCD down counter (Philips)

74HCT40102 8-bit synchronous BCD down counter (Philips)

74HCT40103 8-bit synchronous binary down counter (Philips)

74HCT40104 4-bit bidirectional universal shift register (Philips)

74HCT40105 4-bit x 16-word FIFO register (Philips)

74HCT40105 4-bit x 16-word FIFO register (NXP)

74HCT4015 Dual 4-bit serial-in/parallel-out shift register (Philips)

74HCT4016 Quad bilateral switches (Philips)

74HCT4017 Johnson decade counter (NXP)

74HCT4017-Q100 Johnson decade counter (nexperia)

TAGS

74HCT4017 Johnson decade counter nexperia

Image Gallery

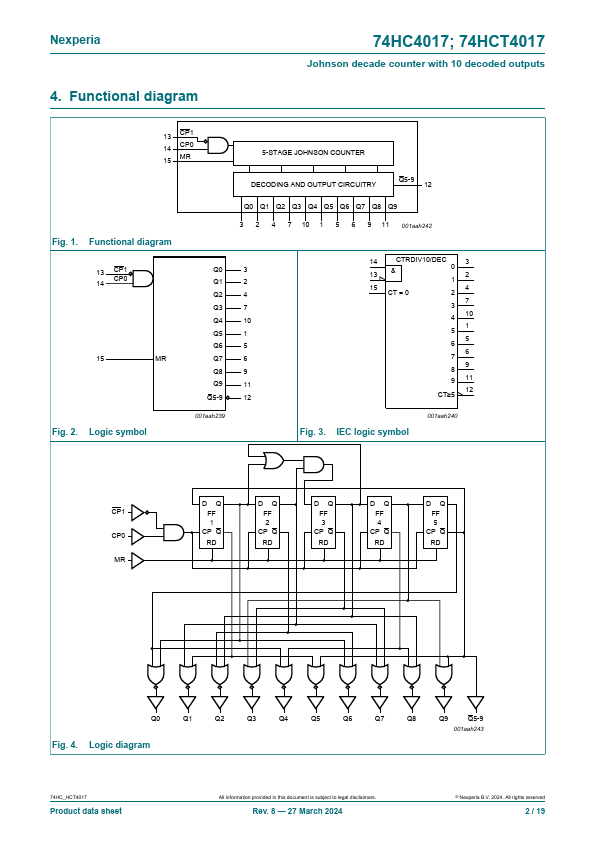

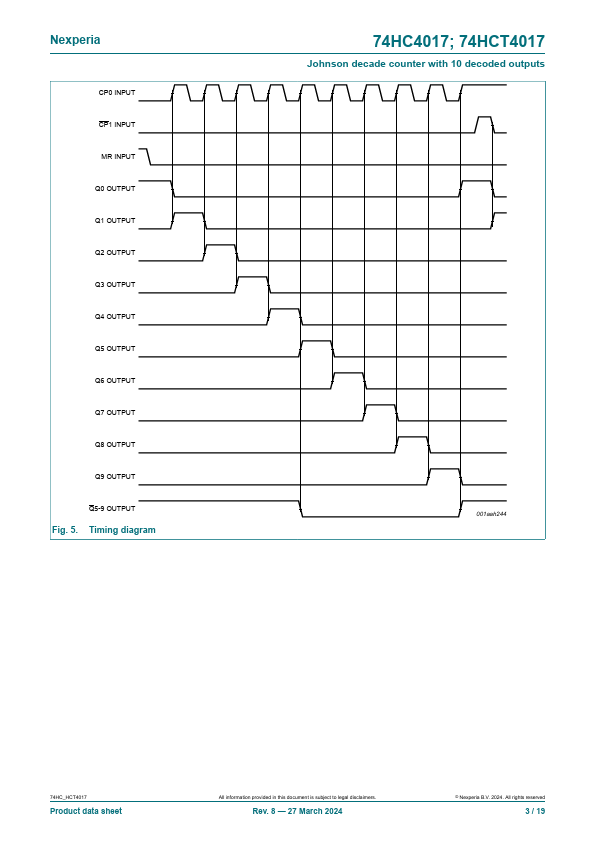

74HCT4017 Datasheet Preview Page 2 74HCT4017 Datasheet Preview Page 3
