Description

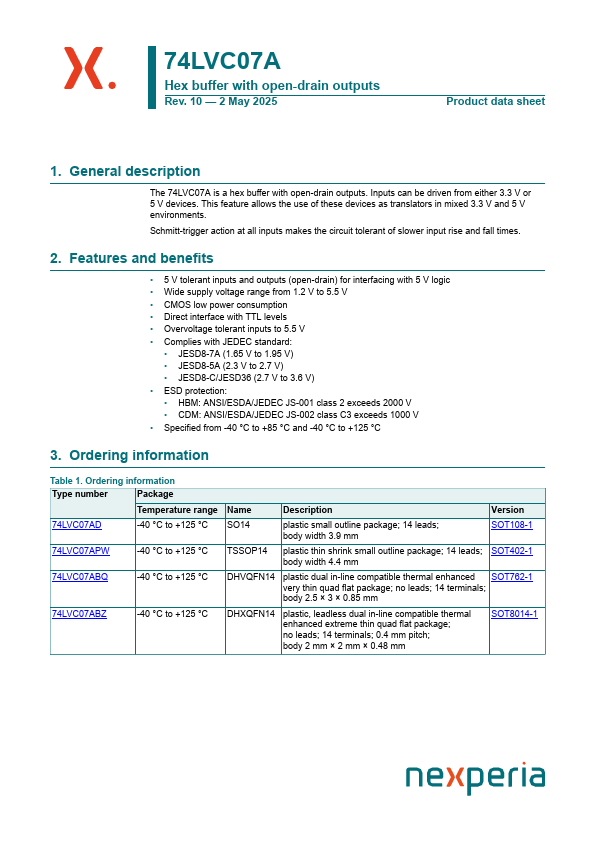

74LVC07A Hex buffer with open-drain outputs Rev.10 * 2 May 2025 Product data sheet 1.General .
The 74LVC07A is a hex buffer with open-drain outputs.

📥 Download Datasheet

74LVC07AD Datasheet Preview — This datasheet PDF includes multiple part numbers: 74LVC07AD, 74LVC07A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 74LVC07AD, 74LVC07A
Manufacturer: nexperia ↗
File Size: 257.69 KB
Datasheet: 74LVC07A-nexperia.pdf
Description: Hex buffer
Note: This datasheet PDF includes multiple part numbers: 74LVC07AD, 74LVC07A.
Please refer to the document for exact specifications by model.

Features

* 5 V tolerant inputs and outputs (open-drain) for interfacing with 5 V logic
* Wide supply voltage range from 1.2 V to 5.5 V
* CMOS low power consumption
* Direct interface with TTL levels
* Overvoltage tolerant inputs to 5.5 V
* Complies with JEDEC s
