74LVC126AD Datasheet, Driver, nexperia

74LVC126AD Features

• Driver
• Overvoltage tolerant inputs to 5.5 V
• Wide supply voltage range from 1.2 V to 3.6 V
• CMOS low power consumption
• Direct interface with TTL levels

PDF File Details

Part number:

74LVC126AD

Manufacturer:

nexperia ↗

File Size:

246.62kb

Download:

📄 Datasheet

Description:

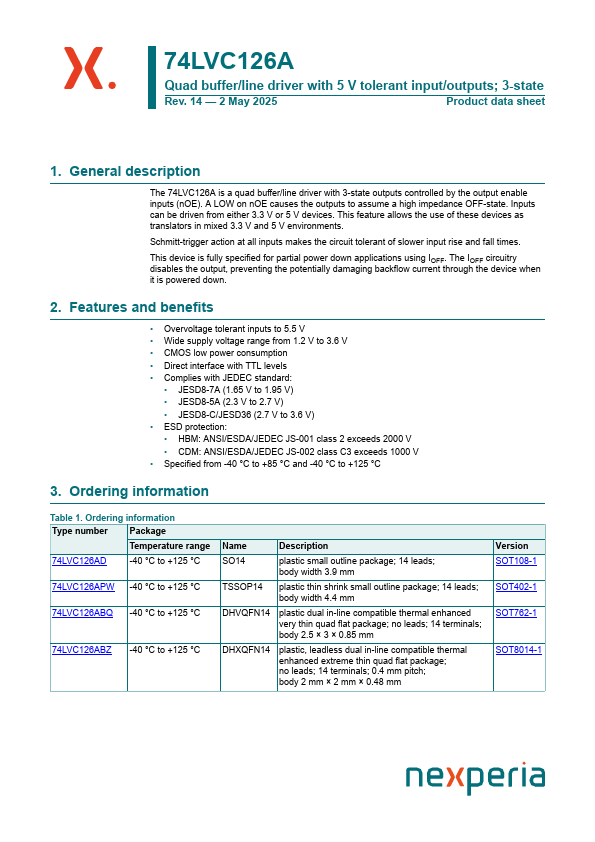

Quad buffer/line driver. The 74LVC126A is a quad buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE). A LOW on nOE causes the

74LVC126AD Application

• Applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is
