74LVC157A Datasheet, Multiplexer, nexperia

74LVC157A Features

  • Multiplexer
  • Overvoltage tolerant inputs to 5.5 V
  • Wide supply voltage range from 1.2 V to 3.6 V
  • CMOS low power consumption
  • Direct interface with TTL levels

PDF File Details

Part number:

74LVC157A

Manufacturer:

nexperia ↗

File Size:

252.17kb

Download:

📄 Datasheet

Description:

Quad 2-input multiplexer. The 74LVC157A is a quad 2-input multiplexer. The device features select (S) and enable E inputs. A HIGH on S selects data source 1, a

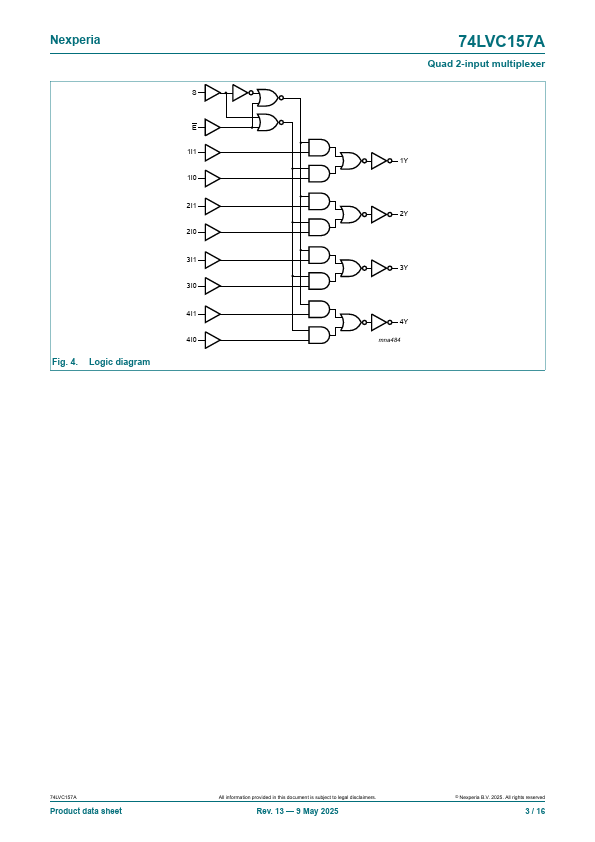

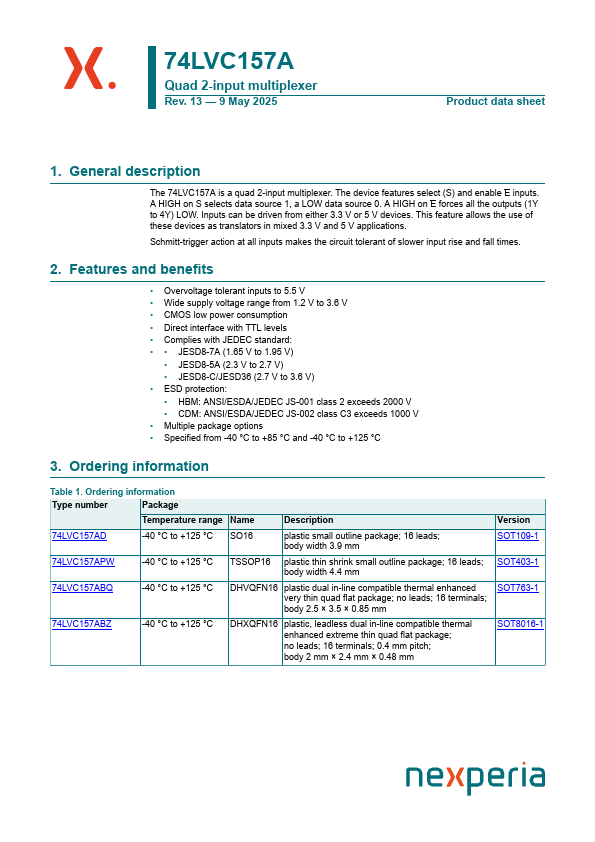

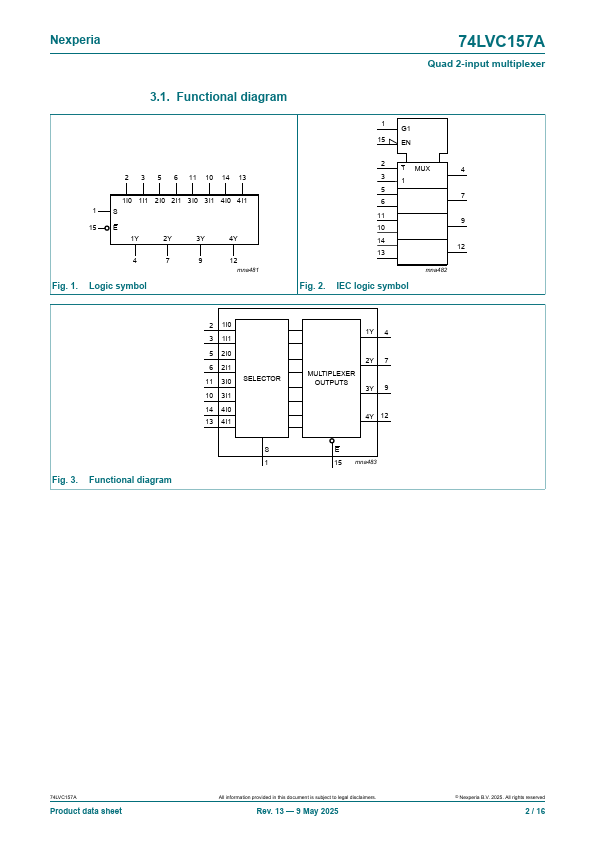

Datasheet Preview: 74LVC157A 📥 Download PDF (252.17kb)
Page 2 of 74LVC157A Page 3 of 74LVC157A

74LVC157A Application

  • Applications Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. 2. Features and benefits
