74LVC1G08GS - Single 2-input AND gate

This page provides the datasheet information for the 74LVC1G08GS, a member of the 74LVC1G08 Single 2-input AND gate family.

Datasheet Summary

Description

The 74LVC1G08 is a single 2-input AND gate.

Inputs can be driven from either 3.3 V or 5 V devices.

This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications.

Features

  • Wide supply voltage range from 1.65 V to 5.5 V.
  • High noise immunity.
  • ±24 mA output drive (VCC = 3.0 V).
  • CMOS low power dissipation.
  • Direct interface with TTL levels.
  • Overvoltage tolerant inputs to 5.5 V.
  • IOFF circuitry provides partial Power-down mode operation.
  • Latch-up performance ≤ 250 mA.
  • Complies with JEDEC standard:.
  • JESD8-7 (1.65 V to 1.95 V).
  • JESD8-5 (2.3 V to 2.7 V).
  • JESD8C (2.7.

📥 Download Datasheet

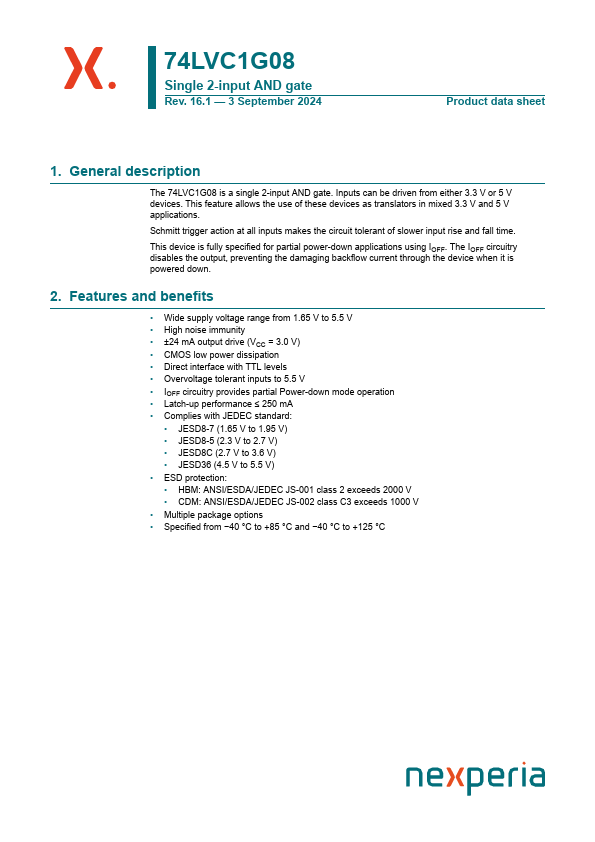

Datasheet preview – 74LVC1G08GS

Datasheet Details

Part number 74LVC1G08GS
Manufacturer nexperia
File Size 277.69 KB
Description Single 2-input AND gate
Datasheet download datasheet 74LVC1G08GS Datasheet

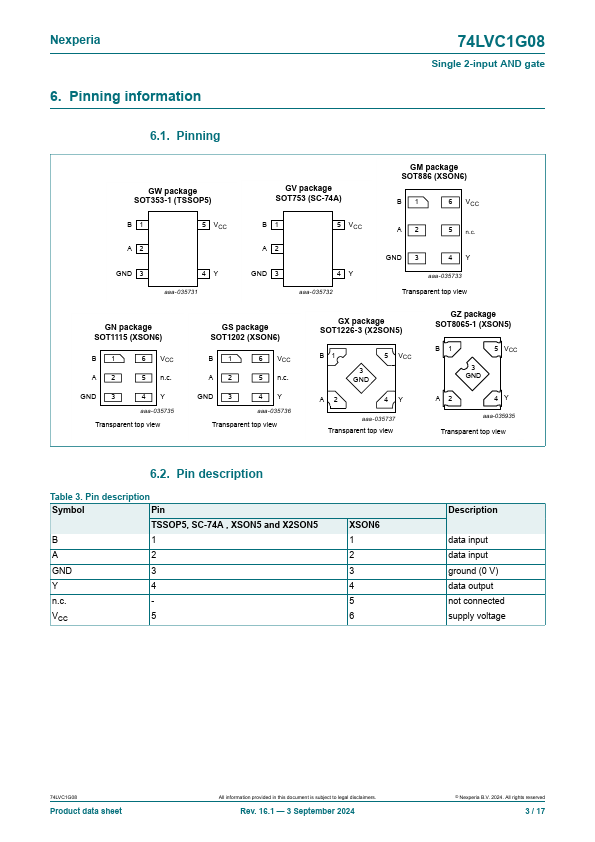

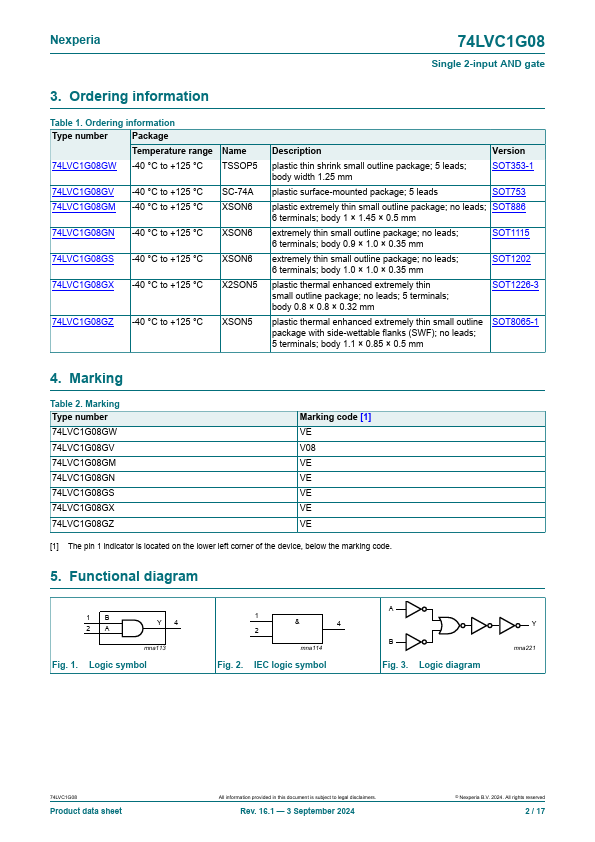

Additional preview pages of the 74LVC1G08GS datasheet.

📁 Similar Datasheet

  • 74LVC1G08 - SINGLE 2 INPUT POSITIVE AND GATE (Diodes)
  • 74LVC1G00 - SINGLE 2 INPUT POSITIVE NAND GATE (Diodes)
  • 74LVC1G02 - SINGLE 2 INPUT POSITIVE NOR GATE (Diodes)
  • 74LVC1G04 - SINGLE INVERTER (Diodes)
  • 74LVC1G06 - SINGLE INVERTER BUFFER/DRIVER (Diodes)
  • 74LVC1G07 - Buffer (NXP)
  • 74LVC1G07 - SINGLE BUFFER/DRIVER (Diodes)
  • 74LVC1G10 - SINGLE 3 INPUT POSITIVE NAND GATE (Diodes)
  • 74LVC1G11 - Single 3-input AND gate (NXP)
  • 74LVC1G11 - SINGLE 3 INPUT POSITIVE AND GATE (Diodes)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text
74LVC1G08 Single 2-input AND gate Rev. 16.1 — 3 September 2024 Product data sheet 1. General description The 74LVC1G08 is a single 2-input AND gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications. Schmitt trigger action at all inputs makes the circuit tolerant of slower input rise and fall time. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down. 2. Features and benefits • Wide supply voltage range from 1.65 V to 5.5 V • High noise immunity • ±24 mA output drive (VCC = 3.
