74LVC1G34 - Single buffer

Datasheet Summary

Description

The 74LVC1G34 is a single buffer.

Inputs can be driven from either 3.3 V or 5 V devices.

This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments.

Features

  • Wide supply voltage range from 1.65 V to 5.5 V.
  • Overvoltage tolerant inputs to 5.5 V.
  • High noise immunity.
  • ±24 mA output drive (VCC = 3.0 V).
  • CMOS low power dissipation.
  • Latch-up performance exceeds 250 mA.
  • IOFF circuitry provides partial Power-down mode operation.
  • Direct interface with TTL levels.
  • Complies with JEDEC standard:.
  • JESD8-7 (1.65 V to 1.95 V).
  • JESD8-5 (2.3 V to 2.7 V).
  • JESD8C.

📥 Download Datasheet

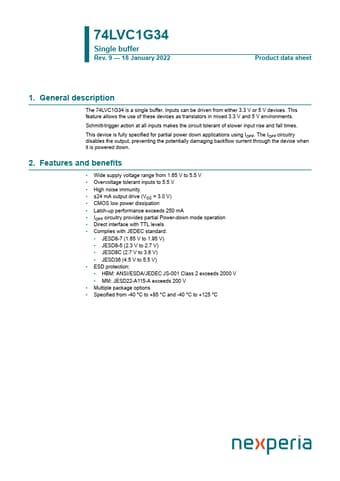

Datasheet preview – 74LVC1G34

Datasheet Details

Part number 74LVC1G34
Manufacturer nexperia
File Size 266.97 KB
Description Single buffer
Datasheet download datasheet 74LVC1G34 Datasheet
Additional preview pages of the 74LVC1G34 datasheet.

📁 Similar Datasheet

  • 74LVC1G34 - SINGLE BUFFER GATE (Diodes)
  • 74LVC1G3157 - SINGLE-POLE DOUBLE-THROW ANALOG SWITCH (Diodes)
  • 74LVC1G3157 - 2-channel analog multiplexer/demultiplexer (NXP Semiconductors)
  • 74LVC1G3157-Q100 - 2-channel analog multiplexer/demultiplexer (NXP)
  • 74LVC1G32 - SINGLE 2 INPUT POSITIVE OR GATE (Diodes)
  • 74LVC1G332 - Single 3-Input OR Gate (NXP)
  • 74LVC1G38 - 2-input NAND gate (NXP Semiconductors)
  • 74LVC1G384 - Bilateral switch (NXP)
  • 74LVC1G386 - 3-input EXCLUSIVE-OR gate (NXP Semiconductors)
  • 74LVC1G00 - SINGLE 2 INPUT POSITIVE NAND GATE (Diodes)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text
74LVC1G34 Single buffer Rev. 9 — 18 January 2022 Product data sheet 1. General description The 74LVC1G34 is a single buffer. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down. 2. Features and benefits • Wide supply voltage range from 1.65 V to 5.5 V • Overvoltage tolerant inputs to 5.5 V • High noise immunity • ±24 mA output drive (VCC = 3.
