Description

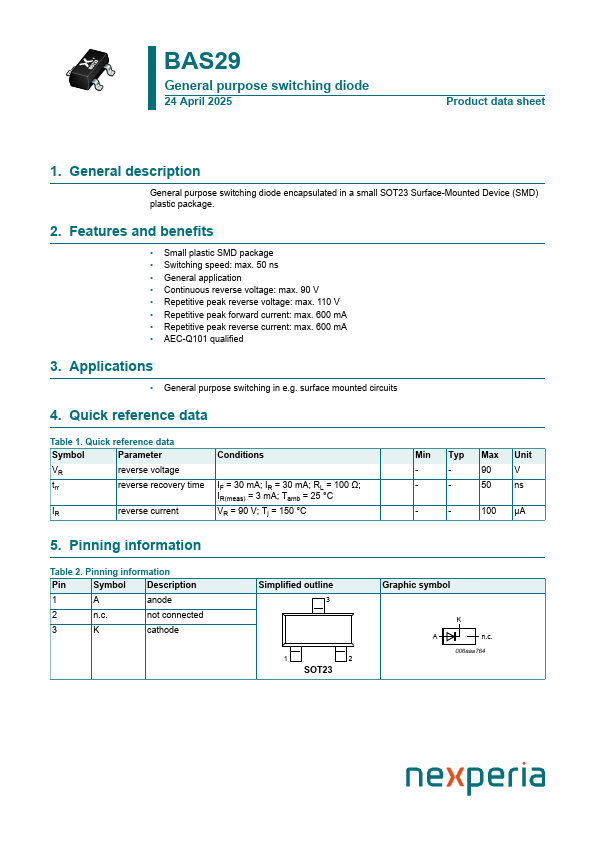

BAS29 General purpose switching diode 24 April 2025 Product data sheet 1.General .
General purpose switching diode encapsulated in a small SOT23 Surface-Mounted Device (SMD) plastic package. Small.

📥 Download Datasheet

BAS29 Datasheet Preview — Preview of BAS29 PDF

Datasheet Specifications

Part number: BAS29
Manufacturer: nexperia ↗
File Size: 185.73 KB
Datasheet: BAS29-nexperia.pdf
Description: General purpose switching diode

Features

* Small plastic SMD package
* Switching speed: max. 50 ns

Applications

* General purpose switching in e. g. surface mounted circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter VR reverse voltage trr reverse recovery time IR reverse current Conditions IF = 30 mA; IR = 30 mA; RL = 100 Ω; IR(meas) = 3 mA; Tamb = 25 °C VR = 90
