BC55-16PA-Q - 1A NPN medium power transistors

This page provides the datasheet information for the BC55-16PA-Q, a member of the BC55PA 1A NPN medium power transistors family.

Datasheet Summary

Description

NPN medium power transistor in an ultra thin SOT1061 leadless small Surface-Mounted Device (SMD) plastic package.

Table 1.

2.

Features

  • High current.
  • Three current gain selections.
  • High power dissipation capability.
  • Exposed heatsink for excellent thermal and electrical conductivity.
  • Leadless very small SMD plastic package with medium power capability.
  • Qualified according to AEC-Q101 and recommended for use in automotive.

📥 Download Datasheet

Datasheet preview – BC55-16PA-Q

Datasheet Details

Part number BC55-16PA-Q
Manufacturer nexperia
File Size 246.15 KB
Description 1A NPN medium power transistors
Datasheet download datasheet BC55-16PA-Q Datasheet
Additional preview pages of the BC55-16PA-Q datasheet.

📁 Similar Datasheet

  • BC550 - NPN Transistor (Kingtronics)
  • BC550 - LOW NOISE TRANSISTORS (Motorola)
  • BC550 - NPN general purpose transistors (NXP)
  • BC550 - NPN EPITAXIAL SILICON TRANSISTOR (Fairchild Semiconductor)
  • BC550 - EPITAXIAL PLANAR NPN TRANSISTOR (KEC)
  • BC550 - NPN Epitaxial Silicon Transistor (ON Semiconductor)
  • BC550 - NPN Transistor (CDIL)
  • BC550A - NPN Transistor (Kingtronics)
  • BC550A - NPN Transistor (Taiwan Semiconductor)
  • BC550A - NPN Transistor (CDIL)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

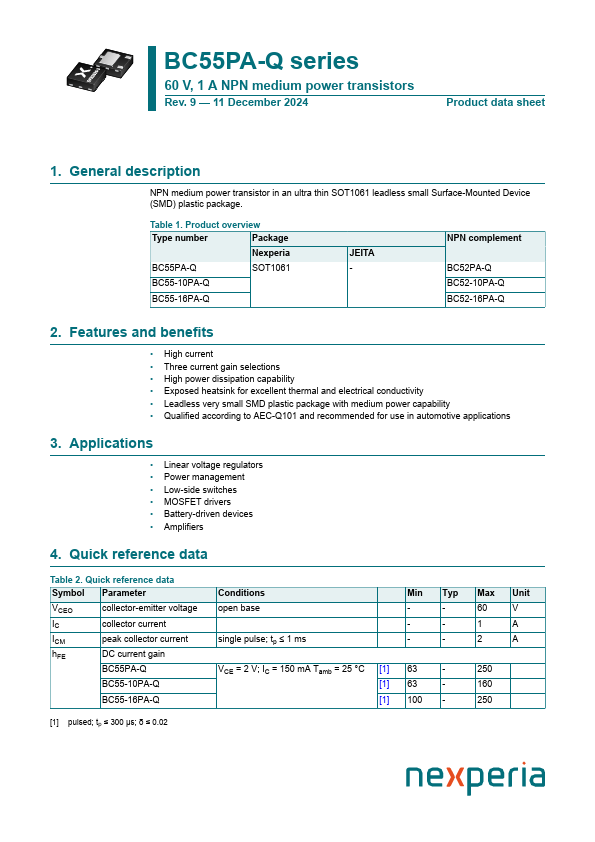

BC55PA-Q series 60 V, 1 A NPN medium power transistors Rev. 9 — 11 December 2024 Product data sheet 1. General description NPN medium power transistor in an ultra thin SOT1061 leadless small Surface-Mounted Device (SMD) plastic package. Table 1. Product overview Type number Package Nexperia BC55PA-Q SOT1061 BC55-10PA-Q BC55-16PA-Q JEITA - NPN complement BC52PA-Q BC52-10PA-Q BC52-16PA-Q 2. Features and benefits • High current • Three current gain selections • High power dissipation capability • Exposed heatsink for excellent thermal and electrical conductivity • Leadless very small SMD plastic package with medium power capability • Qualified according to AEC-Q101 and recommended for use in automotive applications 3.
