BC55-16PAS - 60V 1A NPN medium power transistors

This page provides the datasheet information for the BC55-16PAS, a member of the BC55PAS 60V 1A NPN medium power transistors family.

Datasheet Summary

Description

NPN medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads.

2.

Features

  • High collector current capability IC and ICM.
  • Reduced Printed-Circuit Board (PCB) area requirements.
  • Exposed heat sink for excellent thermal and electrical conductivity.
  • Two current gain selections.
  • Leadless very small SMD plastic package with medium power capability.
  • Suitable for Automatic Optical Inspection (AOI) of solder joint 3.

📥 Download Datasheet

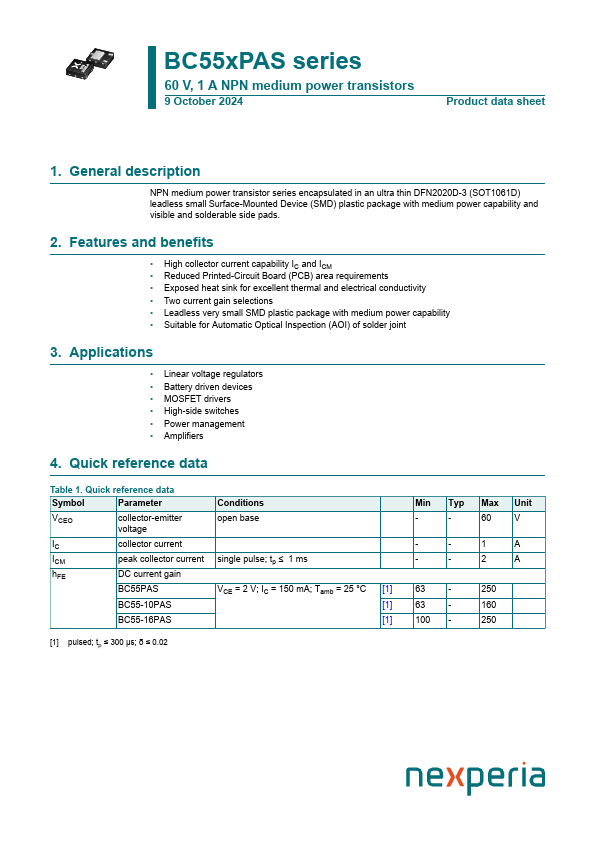

Datasheet preview – BC55-16PAS

Datasheet Details

Part number BC55-16PAS
Manufacturer nexperia
File Size 250.39 KB
Description 60V 1A NPN medium power transistors
Datasheet download datasheet BC55-16PAS Datasheet

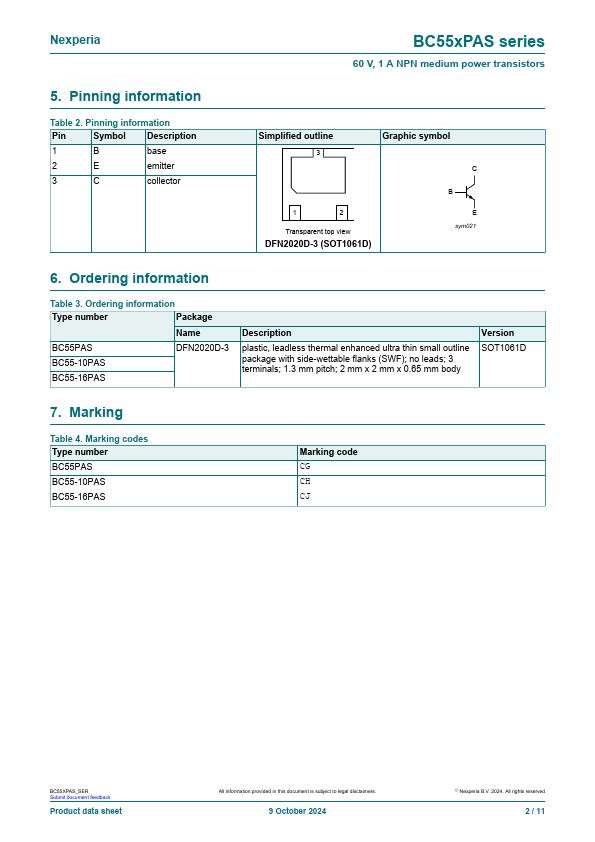

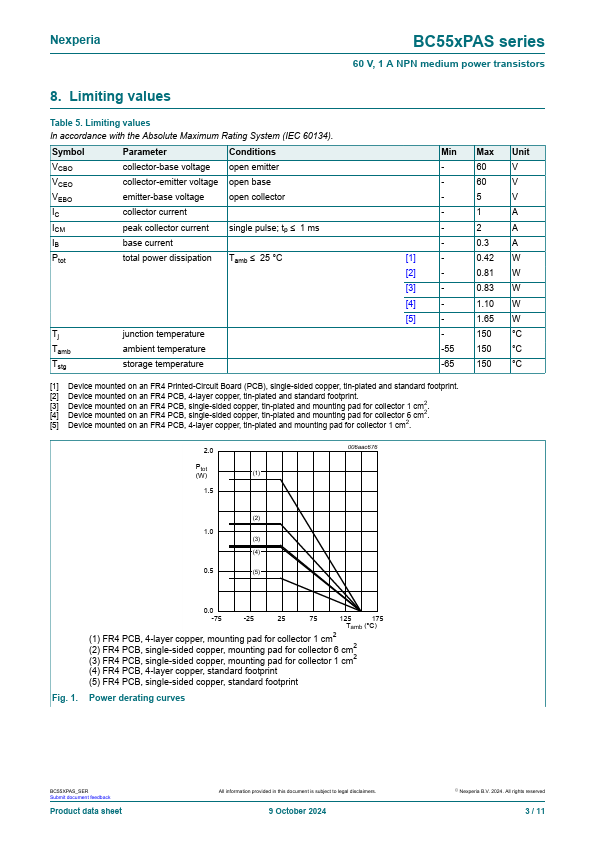

Additional preview pages of the BC55-16PAS datasheet.

📁 Similar Datasheet

  • BC550 - NPN Transistor (Kingtronics)
  • BC550 - LOW NOISE TRANSISTORS (Motorola)
  • BC550 - NPN general purpose transistors (NXP)
  • BC550 - NPN EPITAXIAL SILICON TRANSISTOR (Fairchild Semiconductor)
  • BC550 - EPITAXIAL PLANAR NPN TRANSISTOR (KEC)
  • BC550 - NPN Epitaxial Silicon Transistor (ON Semiconductor)
  • BC550 - NPN Transistor (CDIL)
  • BC550A - NPN Transistor (Kingtronics)
  • BC550A - NPN Transistor (Taiwan Semiconductor)
  • BC550A - NPN Transistor (CDIL)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text
BC55xPAS series 60 V, 1 A NPN medium power transistors 9 October 2024 Product data sheet 1. General description NPN medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads. 2. Features and benefits • High collector current capability IC and ICM • Reduced Printed-Circuit Board (PCB) area requirements • Exposed heat sink for excellent thermal and electrical conductivity • Two current gain selections • Leadless very small SMD plastic package with medium power capability • Suitable for Automatic Optical Inspection (AOI) of solder joint 3.
