BC55-16PAS-Q, BC55PAS-Q - 60V 1A NPN medium power transistors

nexperia

BC55-16PAS-Q Datasheet Preview — This datasheet PDF includes multiple part numbers: BC55-16PAS-Q, BC55PAS-Q. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	BC55-16PAS-Q, BC55PAS-Q
Manufacturer	nexperia ↗
File Size	251.00 KB
Description	60V 1A NPN medium power transistors
Datasheet	BC55PAS-Q-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: BC55-16PAS-Q, BC55PAS-Q. Please refer to the document for exact specifications by model.

BC55-16PAS-Q Product details

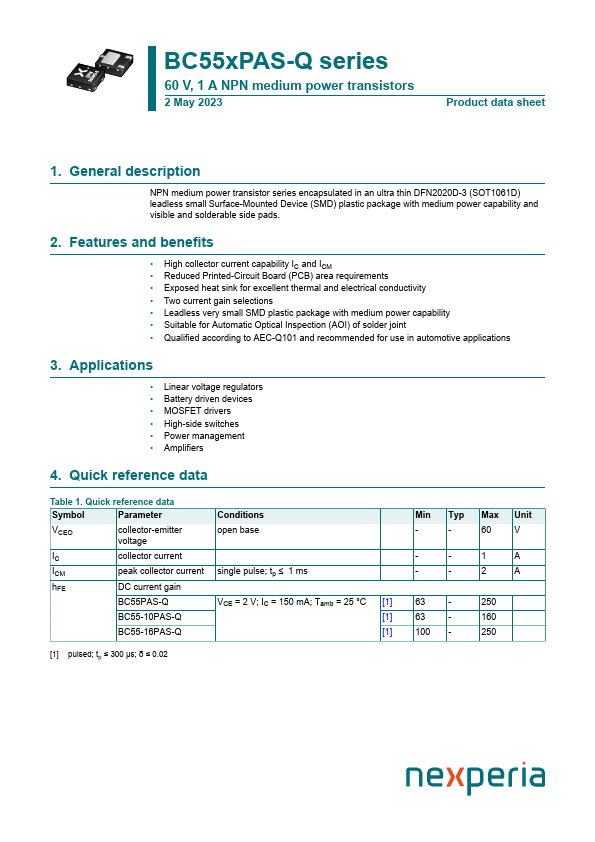

Description

NPN medium power transistor series encapsulated in an ultra thin DFN2020D-3 (SOT1061D) leadless small Surface-Mounted Device (SMD) plastic package with medium power capability and visible and solderable side pads.

Features

High collector current capability IC and ICM.
Reduced Printed-Circuit Board (PCB) area requirements.
Exposed heat sink for excellent thermal and electrical conductivity.
Two current gain selections.
Leadless very small SMD plastic package with medium power capability.
Suitable for Automatic Optical Inspection (AOI) of solder joint.
Qualified according to AEC-Q101 and recommended for use in automotive.
